Techspray Precision-V Solvent

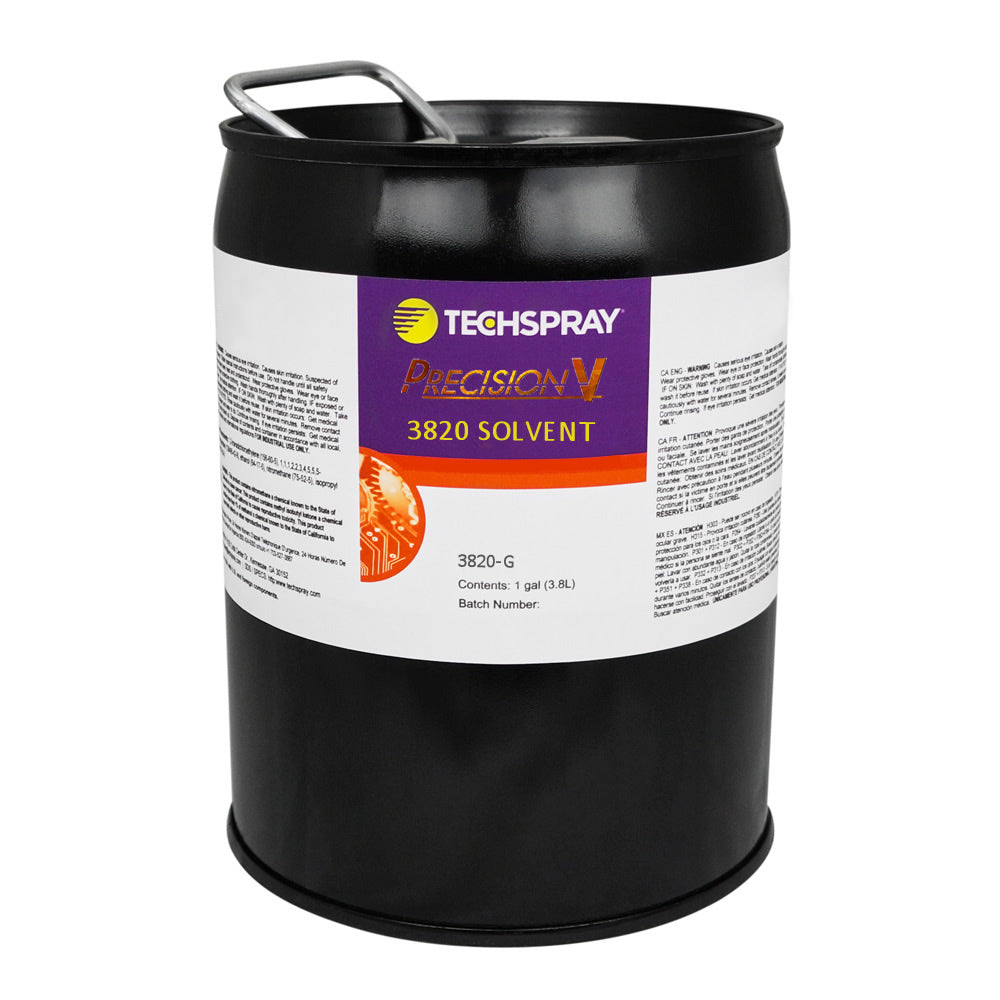

3820-G (1 Gallon)

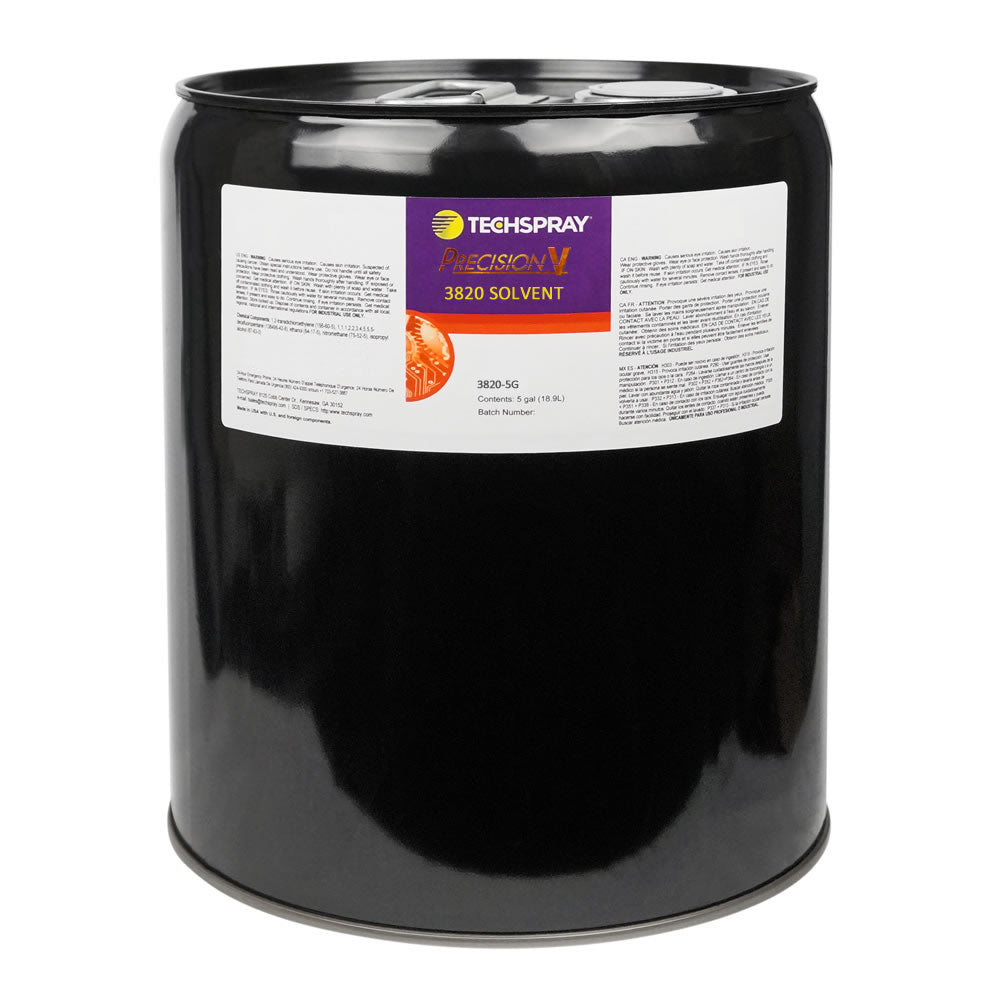

3820-5G (5 Gallon)

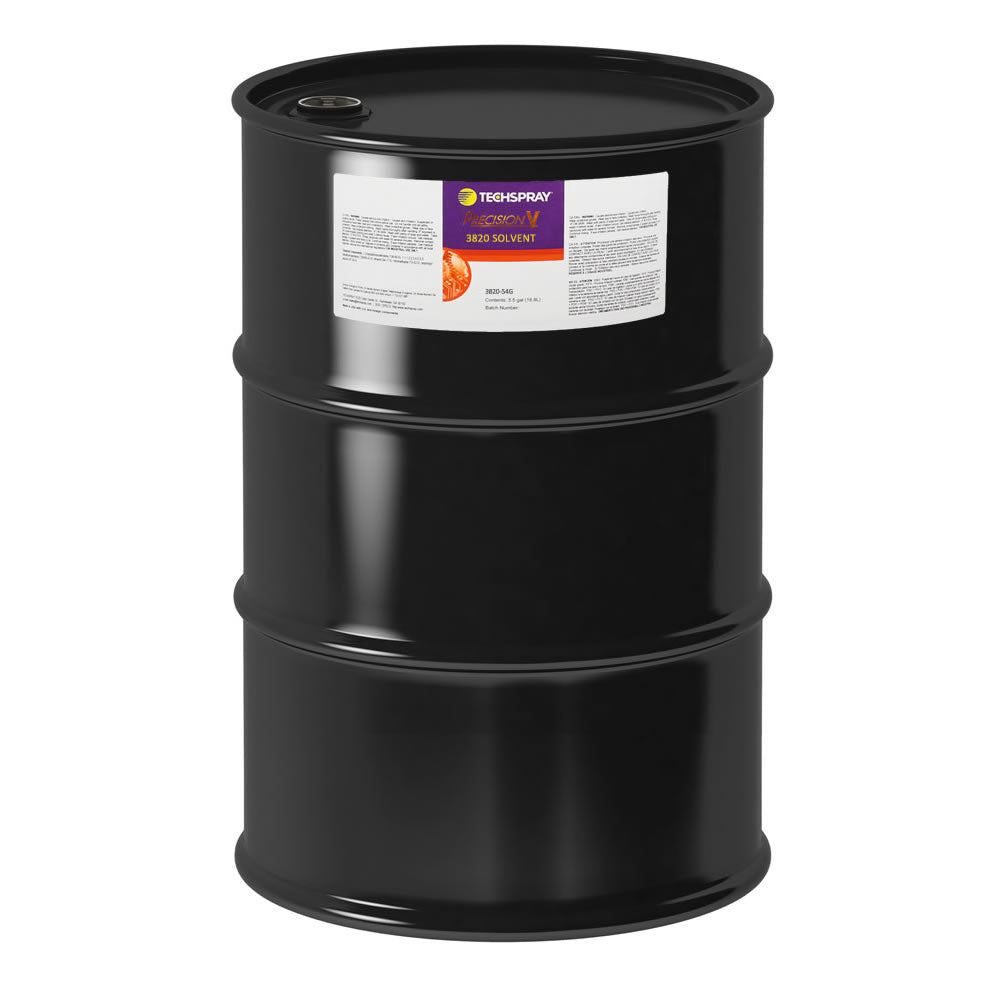

3820-54G (54 Gallon)
Replacement for 3M Novec 71DA, 71DE, 72DA, 72DE & 73DE.
cleans R, RA, RMA and SA type flux residues after high temperature reflow, wave and hand-soldering, with either lead or lead-free solder. It is also powerful enough for cutting fluids, heavy greases & oils
PRODUCT INFO
Ideal replacement for 3M Novec, Chemours Vertrel, and AK225-based solvents.
Precision-V 3820 has azeotropic properties that allow it to safely and efficiently cycle in a vapor degreaser. It is not reactive nor corrosive to metals commonly found in the construction of vapor degreasers.
Exposure to Precision-V solvents is less hazardous than other solvents commonly used in vapor degreasers: e.g. TCE, nPB, and Perc. Precision-V 3820 has a lower boiling point than other vapor-degreaser solvents, reducing heat-stress on components being cleaned and reducing energy consumption from the boil sump and chiller coils.
Precision-V 3820 cleans R, RA, RMA and SA type flux residues after high temperature reflow, wave and hand-soldering, with either lead or lead-free solder. It is also powerful enough for cutting fluids, heavy greases & oils
NOTE: Reformulated replacement for Precision-V Parts Cleaner (part #1654), Flux Remover (1655), and VC-1600 (1656).
As with all vapor degreaser equipment and processes, observe all safety precautions, guidelines and operating rules associated with these units. Failure to do so may put operations personnel at risk. Avoid excessive vapor losses, loss of refrigeration, excessive boil sump heat, etc. Make sure all equipment is operated in accordance with the manufacturer’s guidelines and instructions. If in doubt, contact your manufacturer immediately.
FEATURES & BENEFITS
- Ideal replacement for 3M Novec 71DA, 71DE, 72DA, 72DE & 73DE
- Powerful cleaner – effective on fluxes, cutting fluids, heavy greases & oils
- Nonflammable
- Rapid evaporation
- Zero residue
- Safe on most plastics
- Low VOC
- Non-ozone depleting
- Low Boiling Point – Lower Heat-Stress, Lower Energy
IDEAL FOR
- Used in vapor-degreasers and as cold cleaner
- Removes flux residues electronic or electrical soldering
- Effective on both rosin and no-clean fluxes
- Effective for lead and lead-free soldering processes
- Removes light oils
SPECIFICATIONS
- Boiling point (°F/°C) - 102/39
- VOC - EPA 43%, CARB 100%, SCAQMD 1342 g/l
- GWP - 374
For more information, please review the Technical Data Sheet and Safety Sheet.
Purchasing in bulk? Speak to our sales here to purchase in gallons or larger volumes.
