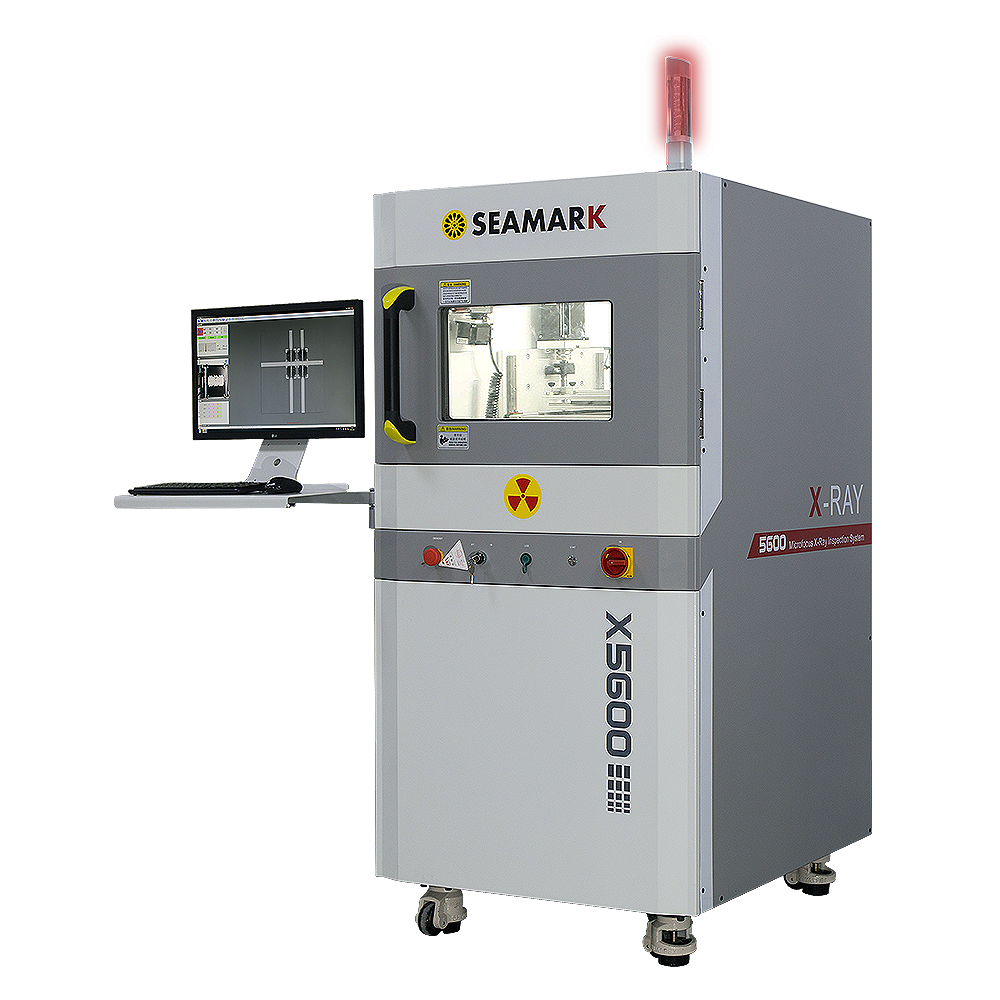

Small Precision Micro-Focus X-ray inspection equipment for defect detection
Suitable for R&D enterprise, laboratories, quality inspection etc.
Features
- Small machine for easier installation and operation
- Applicable for chip, LED, BGA/CSP, wafer, SOP/QFN, SMT and PTU packaging, sensors, connectors and precision casting inspection
- High resolution design for the best image in the shortest time
- Infrared automatic navigation and positioning function - select shooting location quickly
- Inclined multi-angle inspection makes it easier to inspect sample defects
- Simple software operation
- Low operating costs
- Long lifespan
-
CNC Inspection Mode: Quickly and automatically inspect multi-point array
-
Tilt Angle Inspection Function: A tilt angle of +/-30° makes it easier to analyse and identify defects from multiple angles
-
360° Rotating Photo Inspection Function: Take images all around with no dead angle or blind spots for defect observation
Specifications
X-ray Tube
| Tube Type |
Reflective Sealed Micro-Focus X-ray Tube |
| Voltage Range |
40 - 90 KV |
| Electricity Range |
10 -200 uA |
| Max Output Power |
8 W |
| Micro Focus Size |
5 - 15 um |
Flat Panel Detector
| Detector Type |
Amorphous Silicon Flat Panel Detector |
| Pixel Matrix |
1536 x 1536 |
| Field of View |
130 x 130 mm |
| Resolution |
5.8 Lp/mm |
| Frame (1 x 1) |
20 fps |
| AD Conversion Bit |
16 bits |
Equipment
| Dimensions |
850 L x 1000 W x 1700 H mm |
| Input Power |
220V 10A 50-60Hz |
| Max Sample Size |
280 x 320 mm |
| Operation System |
Industrial Computer WIN10 64Bit |
| Net Weight |
750kg |
