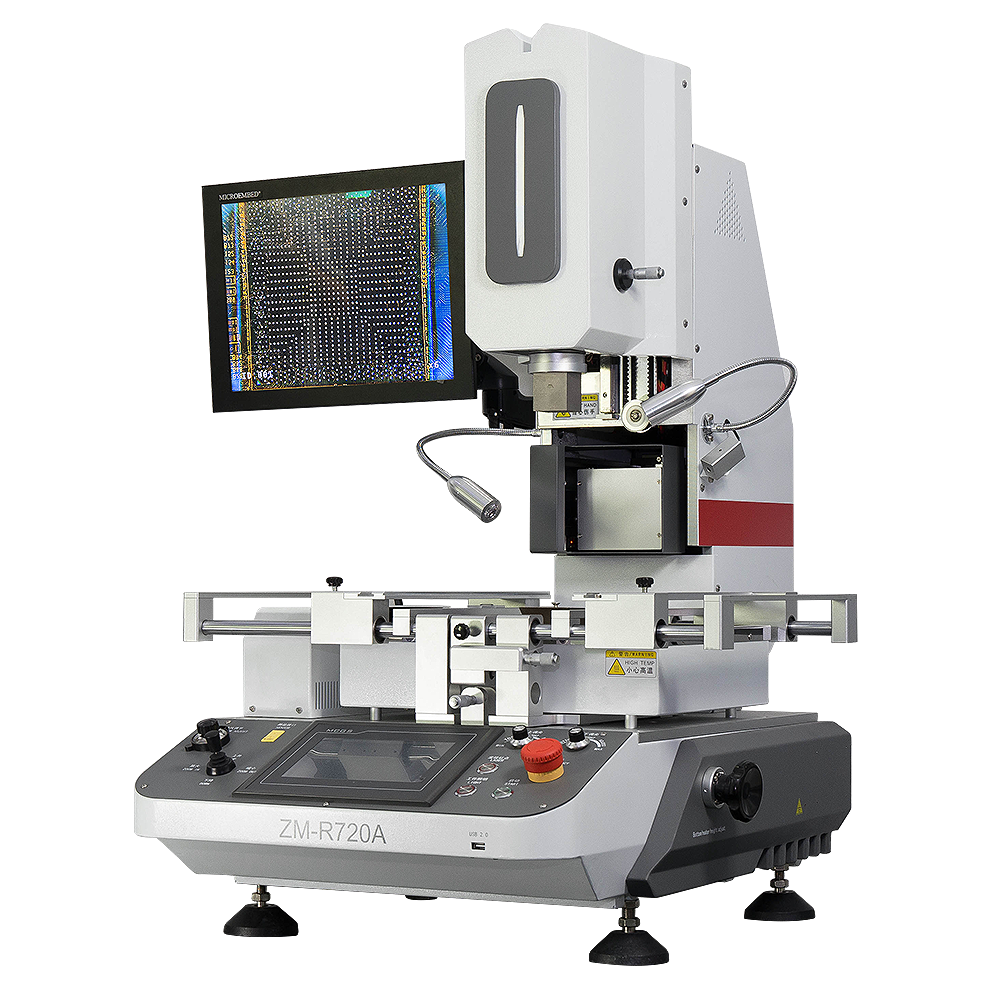

A precise optical intelligent LED rework station suitable for the rework of precision microdevices.
This machine adopts imported HD CCD digital imaging, automatic optical zoom system, rework of precision microdevices, carbon fibre infrared BGA heating tube, and automatic feeding.
Features
Carbon Fiber Infrared Heating Tube
The IR preheating zone uses carbon fiber infrared tube heating and high temperature resistant microcrystalline panel protection, and a multi-functional movable PCB fixing bracket.
Precision Tiny Devices and Automatic Feeding
Seamark is dedicated to the repair equipment of precision micro devices, automatic feeding device, optional LED feeder feeding fixture.
High Definition Display
Using imported high-definition CCD (2m pixels) digital imaging system with automatic optical zoom, automatic control laser red-dot precision alignment, using 15' HD industrial display screen.
Specification
| Power Supply |
AC 220V +/- 10% 50/60Hz |
| Power |
6.15KW (max)
Top Heater: 1.45KW
Bottom Heater: 1.2KW
IR Preheater: 3.2KW
Other: 0.3KW |
| PCB Size |
Max: 412 x 370 mm
Min: 6 x 6mm |
| BGA Chip Size |
Max: 60 x 60 mm
Min: 0.6 x 0.6 mm |
| IR Heater Size |
380 x 280 mm |
| Temperature Sensor |
1 |
| Operation Method |
7" HD Touch Screen |
| Control System |
Autonomous heating control system V2 |
| Display System |
15" HD Industrial Display (1080P, 16:9) |
| Alignment System |
2 million pixel HD Digital Imaging System. Automatic Optical Zoom with Laser Red-Dot Indicator |
| Vacuum Adsorption |
Automatic |
| Alignment Accuracy |
+/- 0.01 mm |
| Temperature Control |
K-type Thermocouple Closed-Loop Control with Accuracy up to +/- 1C |
| Feeding Device |
Yes |
| Positioning |
V-groove with Universal Fixture |
| Dimensions |
810 L x 635 W x 870 H mm |
| Weight |
84.5kg |
