Monocular Zoom stereo video microscope for observation, inspection and measurement
SEE THE BIGGER PICTURE

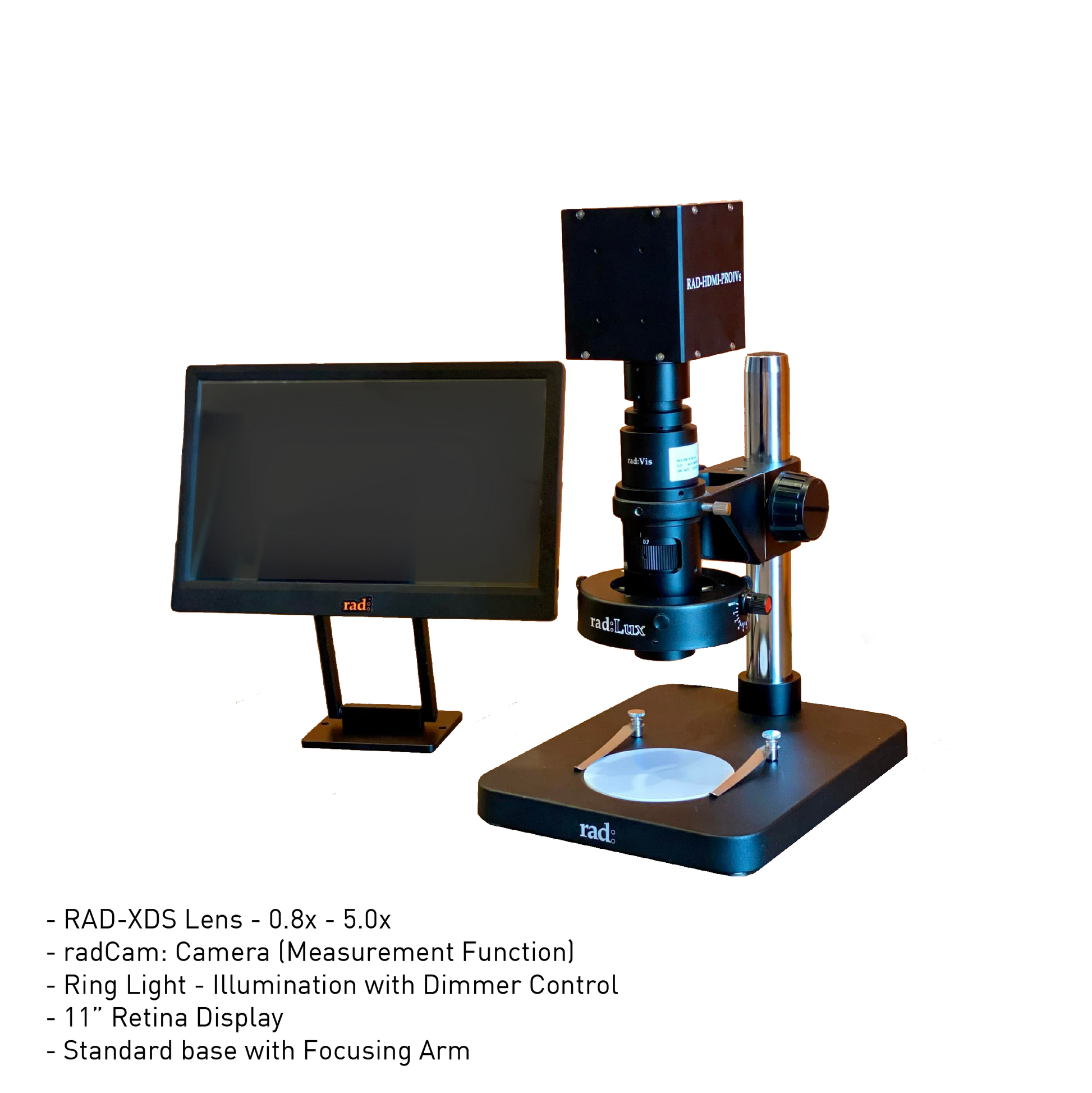

The Rad-XDS stereo video microscope is used in electronic equipment, semi-conductor, laser, LED, industrial online testing, biological research and many other industries for observation, inspection, and measurement.
The high quality and fully coated optical system integrates to form clear and sharp images.
- Zoom stereo objectives, high resolution and clearance
- Focusing knobs also used for tension adjustment
- Magnification: 0.7X - 5X
- Working distance: 105mm
radCAM (Camera)
- Manual and Automatic adjustment for exposure and white balance
- USB Storage
- Excellent HDR and Digital Zoom
-
Camera built in with Measuring feature (for camera with measurement function only)
| Sensor Size |
1/2.8'' |
| Resolution |
1920 x 1080 |
| Frame Rate |
60fps |
| Pixel Size |
2.9um x 2.9um |
| Sensor Size |
2MP |
| Storage |
USB |
| Interface |
HDMI |
| Power |
12V DC |
11" Display
- 11.6'' Retina Display
- Less Space, Greater Convenience
- Can be stand-alone or attached to the microscope for easier viewing
- Built in mouse feature allows control of the camera without using a PC
| Screen Size |
11.6'' |
| Screen Ratio |
16:9 |
| Resolution |
1920 x 1080 |
| Display Mode |
IPS-PRO, FW-LensVT |
| Contrast |
1000 : 1 |
| Interface |
HDMI |
| Dot Pitch |
0.1338mm |
| Brightness |
320cd/m |
radLUX (Ring Light)
- Double row ring illumination
- Turning knob on the side allows for easy dimming control or to turn off the light completely
| Power Input |
110 - 240 VAC |
| Current |
100mA |
| Watt |
2.4W Max |
| Life Rating |
50,000 hours |
| ID Dimension |
66mm |
| Casing Material |
Powder Coat |
| LED |
Japan type, Double ROW |
| Working Distance |
60 - 100mm |
