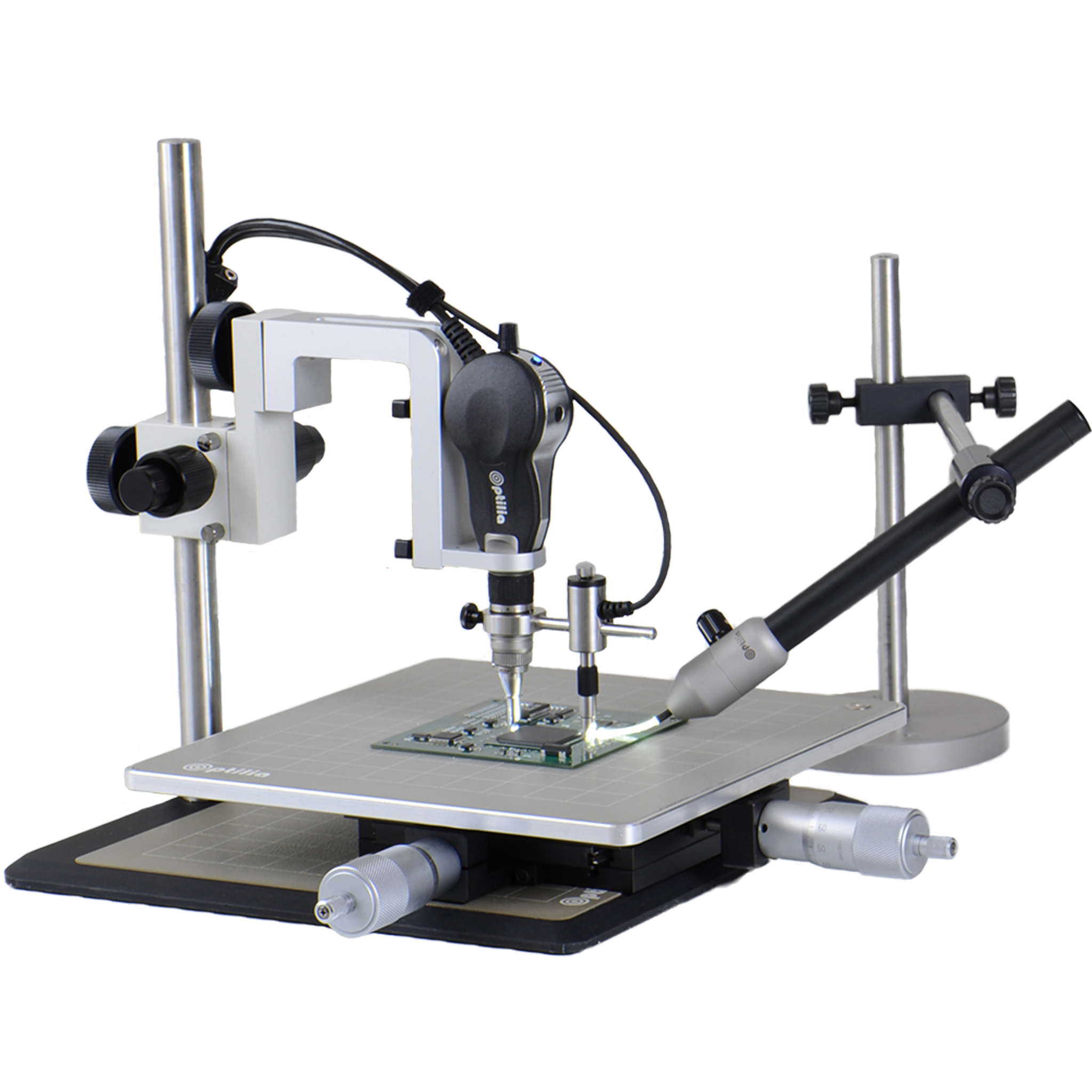

Optilia BGA Extensive Inspection System

Optilia BGA Extensive Inspection System

Optilia BGA Extensive Inspection System - 5MP, ESD-protected

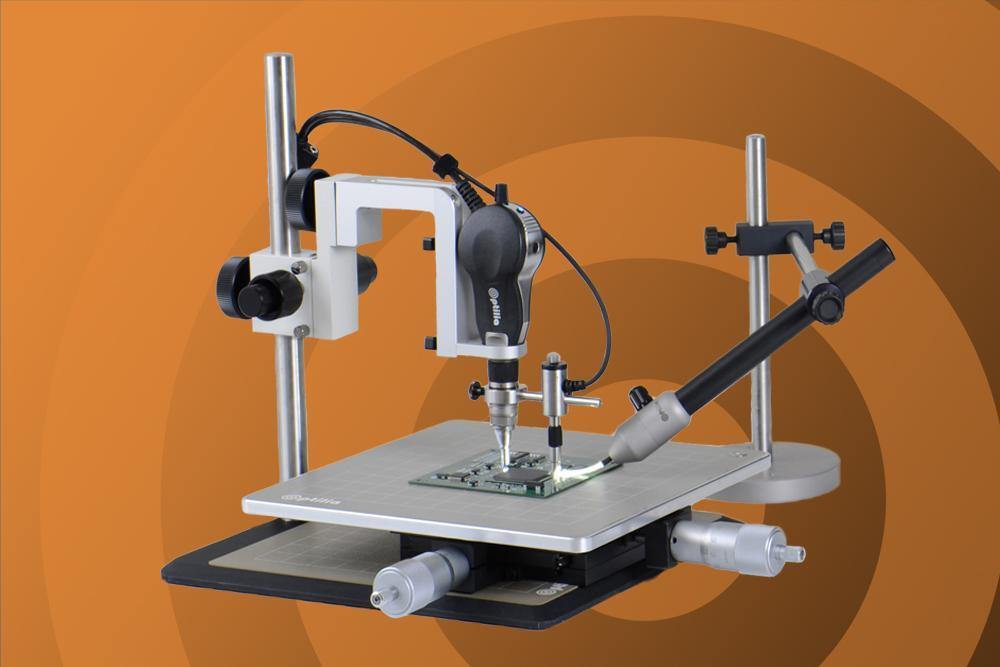

The Optilia Extensive BGA system produces high-resolution digital pictures with excellent colour and detail definition. It creates sharp images of solder balls under BGA packages up to 10 rows and to 40 µm component stand-off.

Flexia BGA is designed according to the requirements of electronics manufacturers regarding flexibility, image quality and time and cost effectiveness. The system is ESD-protected and EPA approved according to EN and IEC standards.

Features
  • Flexible and powerful digital vision system
  • Excellent for pictures of solder balls under BGA packages
  • Very fast and responsive auto focus
  • Works great with OptiPix software
  • Magnification of the lenses 5x - 350x (~50 mm to ~ 0.3 mm working distance)
Packing List

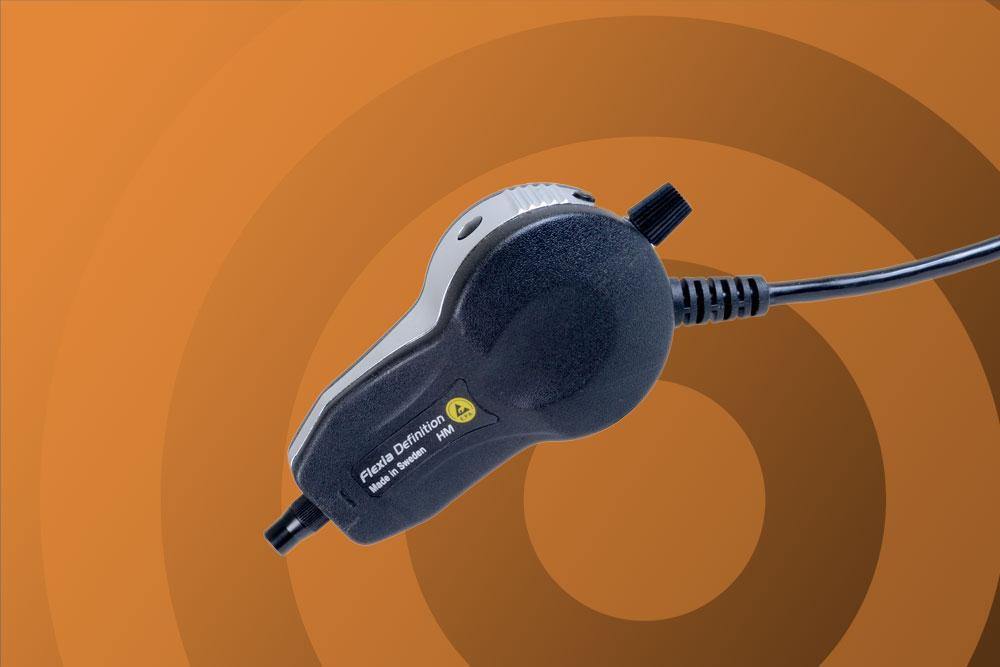

  • Flexia Definition 5MP Digital HM, with 100x lens, ESD-protected
  • Side Viewing BGA lens with Ultra Small Size 90° optical probe
  • Small Size 90° Optical probe for BGA lens
  • BGA Micro Prism Background Illumination with electronic dimmer, Attachable
  • Brush Light, White LED with Dimmer and 2xAA battery tube and DC-adapter
  • Stand for Brush Light
  • 1-100x varifocal lens with built-in LED ringlight
  • RingLight White LED for 100x Objective
  • OptiPix Advanced with Data Base, including Calibration micrometer scale for BGA
  • Focusing Stand, Coarse/fine movement, ESD-protected
  • Precision XY-Translation Board, 25x25mm travel, incl. 2x Quick feed micrometer screws. ESD-Protected.
  • Installation CD, User’s manual and other documents
  • Annual service and support for OptiPix (1 year)
  • Aluminum Transport Case, 380x295x80 with Foam inlet (one level)
