LPKF ProtoLaser H4 - PCB Prototyping

LPKF ProtoLaser H4 - PCB Prototyping

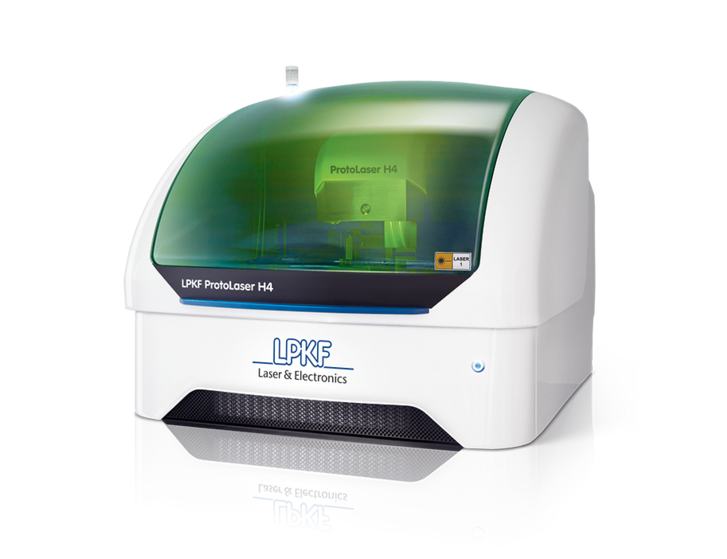

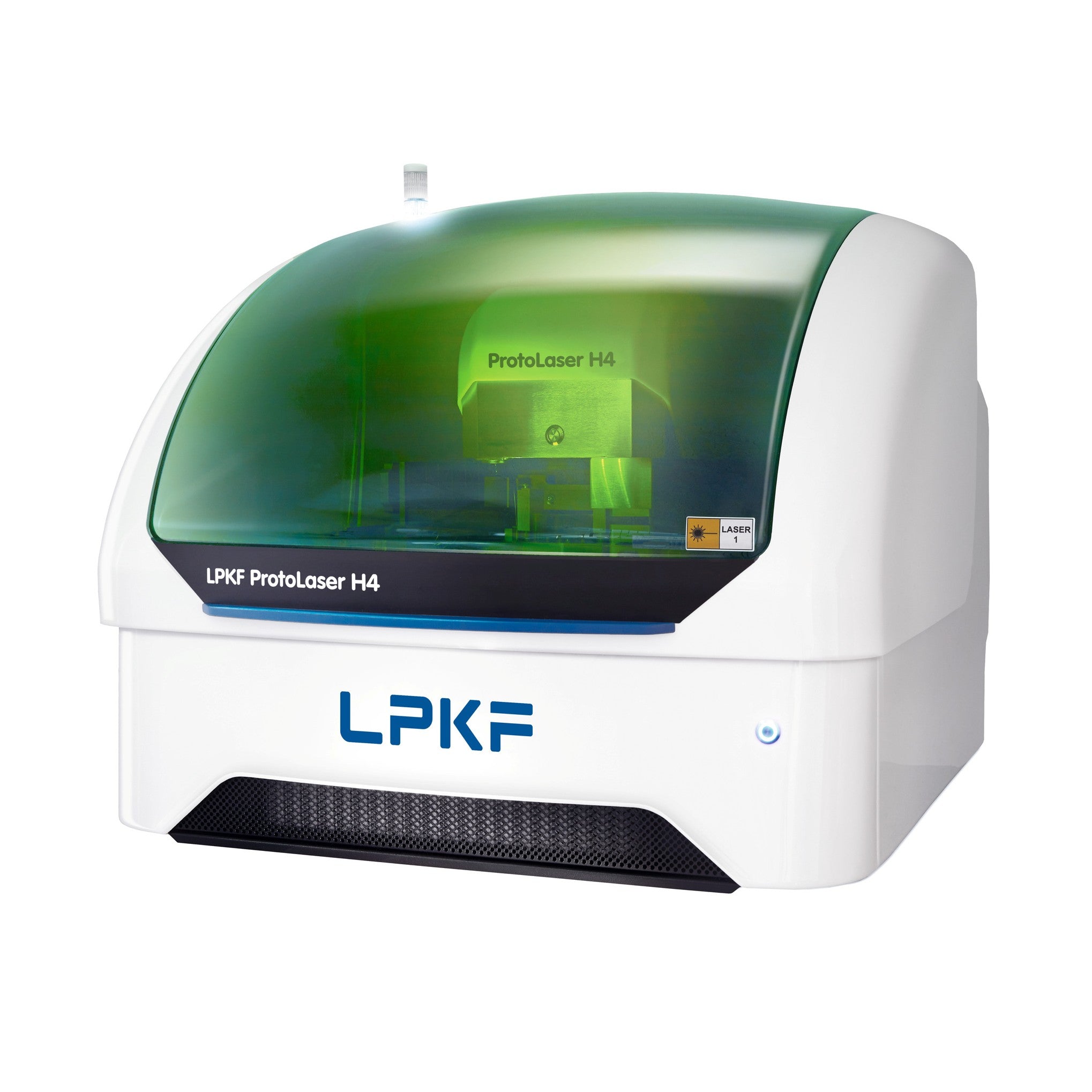

LPKF ProtoLaser H4 - Enhanced Tabletop System for fast PCB Processing

Efficiently process various circuit board materials with quick surface processing capabilities. The LPKF ProtoLaser H4 achieves precise geometries through a contactless, scanner-based process, ensuring exactness in every detail. Mechanical drilling enables accurate drilling and routing, even on thick substrates. The tabletop system, compact and safe with its lab-ready, class 1 laser, provides convenience and peace of mind. Operating the system is straightforward with the intelligent and intuitive LPKF CircuitPro RP software.

Feature and Benefits

Fast processing, wide range of materials, reliable process results in the laboratory!

This compact and economical solution is based on the proven concept of the LPKF ProtoLaser and LPKF ProtoMat systems. In combination with the LPKF CircuitPro software, it guarantees flawless operation based on your CAD data.

Plug & play, all-in-one, desktop entry level laser system, comes with built-in computer and software

Only power supply, compressed air and dust extraction need to be connected to process standard single and double-sided FR4 materials, some single-sided RF, PTFE or ceramic filled materials as well as certain flex substrates like Al on PET with 100 μm/50 μm line/space.

Flexible materials and foils can be freely positioned and fixed precisely on a vacuum table.

Easy-to-use

The vision alignment, six mechanical tool positions as well as numerous  software-defined laser tools and a broad library of  predefined materials enable the LPKF ProtoLaser H4 to be operated with almost no user intervention.

Compact and efficient

The system requires only a power supply and compressed air. In operation, the LPKF ProtoLaser H4, which has a granite base, complies with laser class 1; thus, no further protective measures are required.
