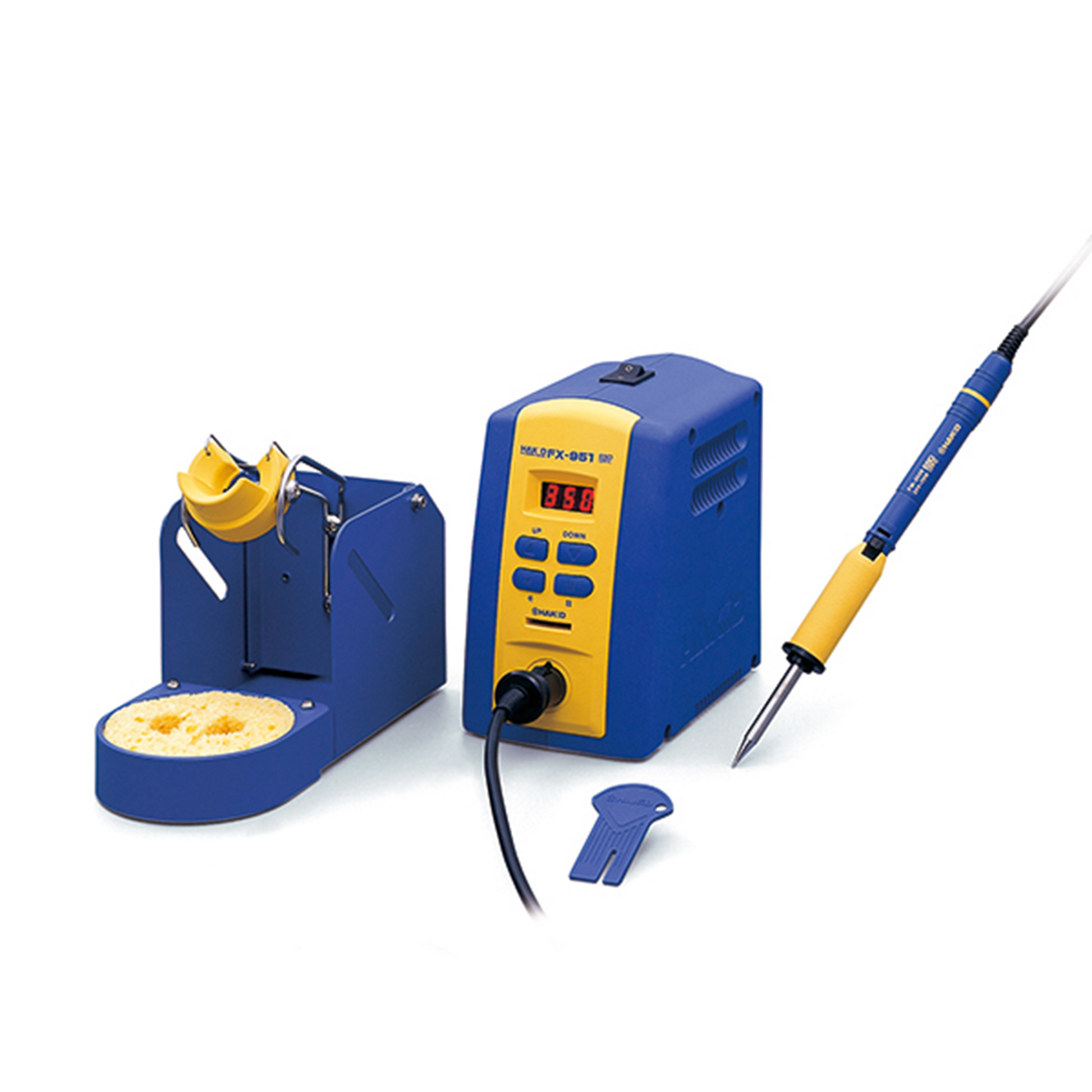

Compact high-power thermally-controlled soldering iron
Standard model that ensures high thermal recovery needed for lead-free soldering
Selectable soldering iron for N2 system or micro soldering
Please refer to the User Manual for detailed specifications.
Packing List
| Packing List |
Part No. |
| Unit |
- |
| Soldering iron |
FM2028-01 |
| Power cord |
B2419 |
| Control card |
B2972 |
| Heat resistant pad |
B2300 |
| Iron holder |
FH200-02 |
| Connecting cable |
B3253 |
| Instruction manual |
- |
Features
Carefully designed station
- Our commitment to producing iron holders
- The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
- It shows HAKKO's commitment to soldering iron base stand which is used 100's of times a day.
Three Features of the Soldering Iron HAKKO FM-2028
- Interlock mechanism with the iron holder makes setting of the power-save setting easy.
- Power-save function allows minute-by-minute setting. (up to 30 minutes) 0-29mins. --- Sleep mode, 30 mins.--- Auto-power, Shut off
- Enclosed type iron holder ensures safety.
Three types of irons for a variety of soldering work
| Included as standard |
Option |
Option |
|
Soldering iron HAKKO FM-2028
 Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.
Thermal Recovery Graph
(The comparison of HAKKO products)
|
N2 soldering iron HAKKO FM-2026
Improve solderability and wettability with the HAKKO N2 system.
*Requires a variety of equipment in addition to the N2 soldering iron.
|
Micro soldering iron
HAKKO FM-2032
Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components.
*Can also be used with the following stations:
HAKKO FM-206
HAKKO FM-203
|
Specifications
Model No. FX-951
- Power consumption: 75W
- Temperature range: 200 to 450ºC
- Temperature stability: ±5ºC at idle temperature
Station
- Output voltage: AC 24V
- Dimensions: 80(W)×130(H)×131(D)mm
- Weight: 1.2kg
Soldering Iron
- Power consumption: 70W (24V)
- Tip to ground resistance: <2Ω
- Tip to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 188mm (with 2.4D tip)
- Weight: 30g (with 2.4D tip)
* Total length and weight (w/o cord)
Soldering Tips
For the HAKKO FX-951, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.
| T12 Series |
|
| Shape BCM/CM |
|
| Shape BC/C |
- T12-BC1
- T12-BC1Z
- T12-BC2
- T12-BC2Z
- T12-BC3
- T12-BC3Z
- T12-BCF1
- T12-BCF1Z
- T12-BCF2
- T12-BCF2Z
- T12-BCF3
- T12-BCF3Z
- T12-BC08
- T12-C1
- T12-C4
|
| Shape B |
- T12-B
- T12-B2
- T12-B2Z
- T12-B3
- T12-B4
- T12-BL
- T12-BZ
- T12-WB2
|
| Shape D |
- T12-D08
- T12-D12
- T12-D12Z
- T12-D16
- T12-D16Z
- T12-D24Z
- T12-D4
- TT12-D4Z
- T12-D52
- T12-DL08
- T12-DL12
- T12-DL32
- T12-DL52
- T12-WD08
- T12-WD12
- T12-WD16
- T12-WD52
|
| Shape I |
- T12-I
- T12-IL
- T12-ILS
- T12-WI
|
| Shape J |
- T12-J02
- T12-JL02
- T12-JS02
|
| Shape K |
- T12-K
- T12-KF
- T12-KFZ
- T12-KL
- T12-KR
- T12-KRZ
- T12-KU
|
| SMD Shape Quad |
- T12-1201
- T12-1202
- T12-1203
- T12-1204
- T12-1205
- T12-1206
- T12-1207
- T12-1208
- T12-1209
|
| SMD Shape Tunnel |
- T12-1001
- T12-1002
- T12-1003
- T12-1004
- T12-1005
- T12-1006
- T12-1007
- T12-1008
- T12-1009
- T12-1010
|
| Shape Concave |
|
Replacement Parts
|
Name
|
Specifications
|
|
FH200-02
|
Iron holder w/ cleaning sponge, with power-save function
|
|
FM2028-01
|
Soldering iron FM-2028 w/ sleeve assembly, yellow, 70W (24V)
|
|
B3253
|
Connecting cable
|
|
B2300
|
Heat resistant pad
|
|
B2972
|
Control card
|
|
B3216
|
Sleeve assembly, yellow
|
|
A1519
|
Cleaning sponge
* The replacement for A1536.
|
|
A1536
|
Cleaning sponge
* Discontinued. The replacement is "A1519".
|
|
FM2028-03
|
Connector assembly
|
|
B3220
|
Connector cover for FM-2028
|
Optional Parts
|
Part No.
|
Name
|
Specifications
|
|
FM2026-03
|
HAKKO FM-2026
|
70W (24V), for N2 soldering
|
|
FM2026-04
|
HAKKO FM-2026 conversion kit
|
70W (24V), for N2 soldering, for Japan, Oceania, Asia & Other countries
|
|
FM2032-52
|
HAKKO FM-2032 conversion kit
|
|
|
FM2028-02
|
Soldering iron FM-2028 <w/ sleeve assembly, blue>
|
70W (24V)
|
|
B3217
|
Sleeve assembly
|
orange
|
|
B3218
|
Sleeve assembly
|
blue
|
|
B3219
|
Sleeve assembly
|
green
|
|
599B-02
|
HAKKO 599B tip cleaner
|
|
|
B2756
|
Tip tray
|
|
