Hakko Products

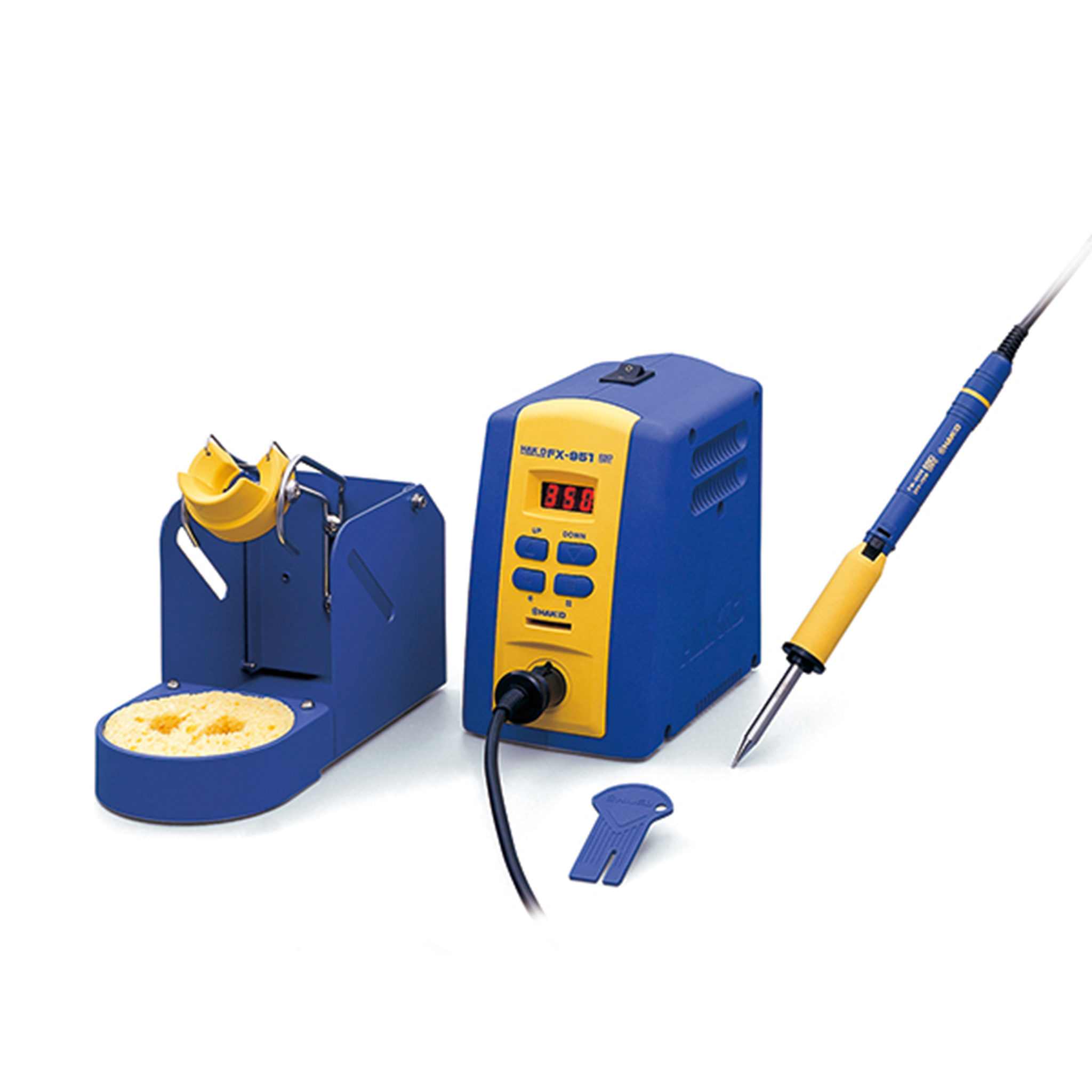

FX951-58 Soldering Station 230V

FX951-58 Soldering Station 230V

0 reviews0
$434.00 SGD
$434.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Couldn't load pickup availability

Click here to shop compatible tips for FX-951 (Tips not included).

  • Compact high-power thermally-controlled soldering iron
  • Standard model that ensures high thermal recovery needed for lead-free soldering
  • Selectable soldering iron for N2 system or micro soldering

    • Please refer to the User Manual for detailed specifications.

    Packing List
    Packing List Part No.
    Unit -
    Soldering iron FM2028-01
    Power cord B2419
    Control card B2972
    Heat resistant pad B2300
    Iron holder FH200-02
    Connecting cable B3253
    Instruction manual -
    Features

    Carefully designed station

    • Our commitment to producing iron holders
    • The angle of the iron holder can be changed freely so that the iron holder accommodates soldering in both a standing and a sitting position.
    • It shows HAKKO's commitment to soldering iron base stand which is used 100's of times a day.

    Three Features of the Soldering Iron HAKKO FM-2028

    • Interlock mechanism with the iron holder makes setting of the power-save setting easy.
    • Power-save function allows minute-by-minute setting. (up to 30 minutes) 0-29mins. --- Sleep mode, 30 mins.--- Auto-power, Shut off
    • Enclosed type iron holder ensures safety.

    Three types of irons for a variety of soldering work

    Included as standard Option Option

    Soldering iron HAKKO FM-2028
    Powerful thermal recovery allows soldering at lower temperature settings. Lineup includes 85 types of standard soldering tips.

    Thermal Recovery Graph
    (The comparison of HAKKO products)
    Thermal Recovery Graph

    N2 soldering iron HAKKO FM-2026

    Improve solderability and wettability with the HAKKO N2 system.
    N2 system reduces soldering defects!
    *Requires a variety of equipment in addition to the N2 soldering iron.

    Micro soldering iron
    HAKKO FM-2032
    Specially designed handle and tip provide improved workability when mounting minute, high-density electronic components.

    *Can also be used with the following stations:

    HAKKO FM-206

    HAKKO FM-203
    Specifications

    Model No. FX-951

    • Power consumption: 75W
    • Temperature range: 200 to 450ºC
    • Temperature stability: ±5ºC at idle temperature

    Station

    • Output voltage: AC 24V
    • Dimensions: 80(W)×130(H)×131(D)mm
    • Weight: 1.2kg

    Soldering Iron

    • Power consumption: 70W (24V)
    • Tip to ground resistance: <2Ω
    • Tip to ground potential: <2mV
    • Heating element: Composite heater
    • Cord length: 1.2m
    • Total length: 188mm (with 2.4D tip)
    • Weight: 30g (with 2.4D tip)

    * Total length and weight (w/o cord)

    Soldering Tips

    For the HAKKO FX-951, soldering iron tips are not supplied as accessories. Please purchase soldering iron tips.

    T12 Series
    Shape BCM/CM
    • T12-BCM2
    • T12-BCM3
    Shape BC/C
    • T12-BC1
    • T12-BC1Z
    • T12-BC2
    • T12-BC2Z
    • T12-BC3
    • T12-BC3Z
    • T12-BCF1
    • T12-BCF1Z
    • T12-BCF2
    • T12-BCF2Z
    • T12-BCF3
    • T12-BCF3Z
    • T12-BC08
    • T12-C1
    • T12-C4
    Shape B
    • T12-B
    • T12-B2
    • T12-B2Z
    • T12-B3
    • T12-B4
    • T12-BL
    • T12-BZ
    • T12-WB2
    Shape D
    • T12-D08
    • T12-D12
    • T12-D12Z
    • T12-D16
    • T12-D16Z
    • T12-D24Z
    • T12-D4
    • TT12-D4Z
    • T12-D52
    • T12-DL08
    • T12-DL12
    • T12-DL32
    • T12-DL52
    • T12-WD08
    • T12-WD12
    • T12-WD16
    • T12-WD52
    Shape I
    • T12-I
    • T12-IL
    • T12-ILS
    • T12-WI
    Shape J
    • T12-J02
    • T12-JL02
    • T12-JS02
    Shape K
    • T12-K
    • T12-KF
    • T12-KFZ
    • T12-KL
    • T12-KR
    • T12-KRZ
    • T12-KU
    SMD Shape Quad
    • T12-1201
    • T12-1202
    • T12-1203
    • T12-1204
    • T12-1205
    • T12-1206
    • T12-1207
    • T12-1208
    • T12-1209
    SMD Shape Tunnel
    • T12-1001
    • T12-1002
    • T12-1003
    • T12-1004
    • T12-1005
    • T12-1006
    • T12-1007
    • T12-1008
    • T12-1009
    • T12-1010
    Shape Concave
    • T12-1610
    • T12-1612
    Replacement Parts

    Name

    Specifications

    FH200-02

    Iron holder w/ cleaning sponge, with power-save function

    FM2028-01

    Soldering iron FM-2028 w/ sleeve assembly, yellow, 70W (24V)

    B3253

    Connecting cable

    B2300

    Heat resistant pad

    B2972

    Control card

    B3216

    Sleeve assembly, yellow

    A1519

    Cleaning sponge
    * The replacement for A1536.

    A1536

    Cleaning sponge
    * Discontinued. The replacement is "A1519".

    FM2028-03

    Connector assembly

    B3220

    Connector cover for FM-2028

    Optional Parts

    Part No.

    Name

    Specifications

    FM2026-03

    HAKKO FM-2026

    70W (24V), for N2 soldering

    FM2026-04

    HAKKO FM-2026 conversion kit

    70W (24V), for N2 soldering, for Japan, Oceania, Asia & Other countries

    FM2032-52

    HAKKO FM-2032 conversion kit

    FM2028-02

    Soldering iron FM-2028 <w/ sleeve assembly, blue>

    70W (24V)

    B3217

    Sleeve assembly

    orange

    B3218

    Sleeve assembly

    blue

    B3219

    Sleeve assembly

    green

    599B-02

    HAKKO 599B tip cleaner

    B2756

    Tip tray
