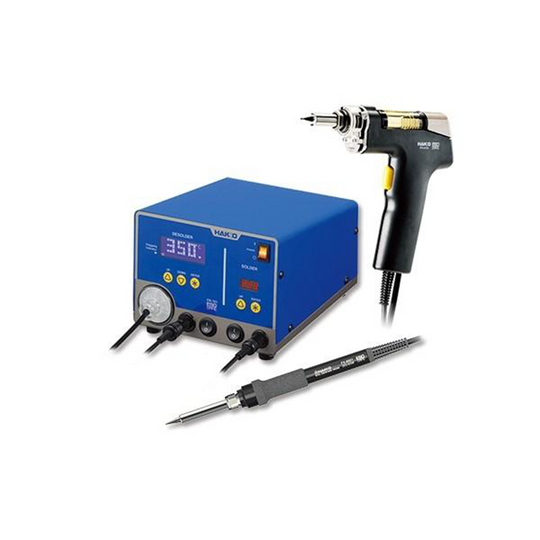

FR701-67 Repair System 230V

FR701-67 Repair System 230V

Regular price $1,760.00 SGD
Regular price $2,500.00 SGD Sale price $1,760.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

  • Powerful Rework Station
  • Safer and more secure rework operation
  • with upgraded soldering and desoldering tools
  • 2-in-1 unit for space saving
  • Compatible with N2 system by purchasing N2 iron (FX-8802) as an optional accessory

Click to shop compatible tips and nozzles:

Tips Nozzles
T18 Series N61 Series
Packing List
  1. Station
  2. Soldering iron (FX-8801)
  3. Desoldering gun (FR-4103)
  4. Iron holder for soldering iron (with cleaning sponge, cleaning wire)
  5. Iron holder for desoldering tool (with cleaning wire)
  6. Tool box (Cleaning pin for 1.0mm dia., Cleaning pin for heater, Cleaning drill for 1.0mm dia., Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4])
  7. Power cord
  8. Instruction manual
Features

Dual function rework station with FR-4103, 140W high power desoldering gun, and FX-8801, soldering iron, 2-in-1 unit for space saving.

6 applications for a variety of soldering and desoldering works

  • Besides FR-4103, 140W desoldering gun, and FX-8801, soldering iron, 4 more applications are compatible with FR-701.
  • Tips (T18 and T19 series) and nozzles (N61 series) deliver excellent cost efficiency.

High-power Desoldering gun HAKKO FR-4103

  • Increasing the power to 140 W from 50 W of our previous models (HAKKO 474・475), it can make it easy to desolder on multi-layer PWB which was never an easy job, and it can also shorten the process time.
  • A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works.
    • Long type nozzles for narrow space
    • Oval shape nozzles for flat terminals
    • SS type nozzles for micro land-patterns

Soldering iron HAKKO FX-8801/FX-8805

  • Thermal conductivity has been increased by reviewing external configuration and internal structure of 900 tip series.

N2 soldering iron HAKKO FX-8802

  • The N2 gas runs into the nozzle assembly and covers over the soldering tip.
  • It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating.
  • Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc.

One-hand Manual-solder-feed iron HAKKO FX-8803

  • Solder and feed with one hand
  • Feed a set amount of solder with one hand
  • Manual feed system is perfect for cellular manufacturing.
  • Soldering work can be conducted at the pace of the operator.
  • T18 tips series are compatible with this application.

SMD Hot Tweezer HAKKO FX-8804

  • Direct heating—less influence upon surrounding components on crowded boards.
  • Easily removes SMD chips and flat packages up to 25mm.
  • The collet allows easy replacement and alignment of the tips.
Specifications

Model No. FR-701(Desoldering tool: FR-4103)

Power consumption: 260W

Station

  • Dimensions: 190(W)×140(H)×220(D)mm
  • Weight: 6.2kg

Station (Soldering)

  • Output voltage: AC 26V
  • Temperature range: 50 to 480ºC
  • Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)

Station (Desoldering)

  • Output voltage: AC 24V
  • Vacuum generator: Vacuum pump, double cylinder type
  • Vacuum pressure: 80kPa (600mmHg)
  • Suction flow: 15L/min.
  • Temperature range: 330 to 450ºC
  • Temperature stability: ±5ºC at idle temperature

Soldering iron

  • Power consumption: 65W (26V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Ceramic heater
  • Standard tip: Shape-B (No.T18-B)
  • Cord length: 1.2m
  • Total length: 222mm (with B tip)
  • Weight: 52g (with B tip)

Desoldering Gun

  • Power consumption: 140W (24V)
  • Nozzle to ground resistance: <2Ω
  • Nozzle to ground potential: <2mV
  • Heating element: Composite heater
  • Standard nozzle: Φ1.0mm S type (No.N61-05)
  • Cord length: 1.2m
  • Total length: 168mm (with Φ1.0mm S type nozzle)
  • Weight: 190g (with Φ1.0mm S type nozzle)

* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)

Accessories

Soldering Tip

T18 Series
Shape BC/C
  • T18-C05 Shape-0.5C
  • T18-C1 Shape-1C
  • T18-C08 Shape-0.8C
  • T18-C2 Shape-2C
  • T18-C3 Shape-3C
  • T18-C4 Shape-4C
  • T18-C4 Shape-5C
  • T18-CF1 Shape-1C
  • T18-CF15 Shape-1.5C
  • T18-CF2 Shape-2C
  • T18-CF3 Shape-3C
  • T18-CF4 Shape-4C
  • T18-CSF25 Shape-2.5CS
  • T18-S6 Shape-S6
    Shape B
    • T18-B
    • T18-BL
    • T18-S4
    • T18-SB
    Shape D
    • T18-D08 Shape-0.8D
    • T18-D12 Shape-1.2D
    • T18-D16 Shape-1.6D
    • T18-D24 Shape-2.4D
    • T18-D32 Shape-3.2D
    • T18-DL12 Shape-1.2DL
    • T18-DL2 Shape-2DL
    • T18-DL32 Shape-3.2DL
    • T18-S3 Shape-S3
    • T18-S9 Shape-S9
    Shape I
    • T18-I Shape-I
    Shape J
    • T18-BR02 Shape-02BR
    Shape K
    • T18-K Shape-K



     N61 Series
    SS Type
    • N61-01
    • N61-02
    • N61-03
    S Type
    • N61-04
    • N61-05
    • N61-06
    Standard Type
    • N61-07
    • N61-08
    • N61-09
    • N61-10
    Long Type
    • N61-11
    • N61-12
    • N61-13
    • N61-14
    Oval Type
    • N61-15
    • N61-16
    Replacement Parts

    Name

    Specifications

    FX8801-01

    Soldering iron FX-8801, 65W (26V), w/B tip

    A1560

    Heating element, 65W (26V)

    B1785

    Nut

    B3469 Enclosure Pipe
    B2022 Nipple

    FR4103-81

    Desoldering tool FR-4103
    * The replacement for FR4101-81.

    140W (24V), w/Φ1.0mm S type nozzle

    A5055

    Heating element, 140W (24V), for FR-4103

    B5222

    Enclosure pipe, for FR-4103

    B5185

    Filter pipe assembly
    * The replacement for B5105.

    B5105

    Filter pipe assembly
    * Discontinued. The replacement is "B5185".

    A5044

    Ceramic paper filter-L (qty 10)
    * The replacement for A1033.

    A1033

    Ceramic paper filter-L (qty 10)
    * Discontinued. The replacement is "A5044".

    B5104

    Pre-filter

    A5030

    Front holder

    A5031

    Filter holder

    A5020

    Filter (qty 10)

    A1013

    Diaphragm (qty 2)

    A1014

    Valve plate (qty 2)

    B5045

    Pipe

    B5049

    Mica, with heater protection sleeve

    B5048

    Iron holder

    B2300

    Heat resistant pad

    C5030

    Tool box

    B5106

    Nozzle wrench

    B1087

    Cleaning pin, for nozzle Φ1mm

    B1215

    Cleaning pin for heating element

    B1303

    Cleaning drill, for nozzle Φ1mm

    B1306

    Drill holder for nozzle Φ0.8/1mm

    B1309

    Drill (nozzle Φ1mm, qty 10)

    FH800-03BY

    Iron holder <w/ cleaning sponge, cleaning wire>

    A1559

    Cleaning sponge for FH-800

    A1561

    Cleaning wire for FH-800

    FH410-82

    Iron holder <w/ cleaning wire> for FR-4103

    599-029

    Cleaning wire

     Options

    Part No.

    Name

    FX8802-01

    Soldering iron FX-8802, 65W (26V), w/B tip, for N2 soldering

    FX8803-02

    Soldering gun FX-8803, 65W (26V), w/3CF tip

    FX8803-03

    Soldering gun FX-8803, 65W (26V), w/3CF tip

    FX8803-04

    Soldering gun FX-8803, 65W (26V), w/3CF tip

    FX8804-02

    SMD hot tweezer FX-8804, 65W (26V), w/2L tip

    FX8804-03

    SMD hot tweezer FX-8804, 65W (26V), w/2L tip

    FX8804-04

    SMD hot tweezer FX-8804, 65W (26V), w/2L tip

    FX8805-01

    Soldering iron FX-8805 65W (26V), w/B tip, for soldering (L type)

    C5046

    Nozzle quick changer for FR-4103, FR-301

    B5228

    Receptacle for C5046

    B5230

    Oval nozzle positioning jig for FR-4103

    C1437

    Iron holder <w/ cleaning sponge>, for 951,952,958,959 (Discontinued) and FX-8803

    FH800-04BY

    Iron holder <w/ cleaning sponge>, blue & yellow, for FX-8804

    B3666

    Holder clip

    B1086

    Cleaning pin for nozzle Φ0.8mm

    B1088

    Cleaning pin for nozzle Φ1.3mm

    B1089

    Cleaning pin for nozzle Φ1.6mm

    B5141

    Cleaning drill for nozzle Φ0.6mm

    B1302

    Cleaning drill for nozzle Φ0.8mm

    B1304

    Cleaning drill for nozzle Φ1.3mm

    B1305

    Cleaning drill for nozzle Φ1.6mm

    B5142

    Drill holder for nozzle Φ0.6mm

    B1307

    Drill holder for nozzle Φ1.3/1.6mm

    B5143

    Drill (nozzle Φ0.6mm, qty 10)

    B1308

    Drill (nozzle Φ0.8mm, qty 10)

    B1310

    Drill (nozzle Φ1.3mm, qty 10)

    B1311

    Drill (nozzle Φ1.6mm, qty 10)

    A1519

    Cleaning sponge (yellow)
    * The replacement for A1536.
