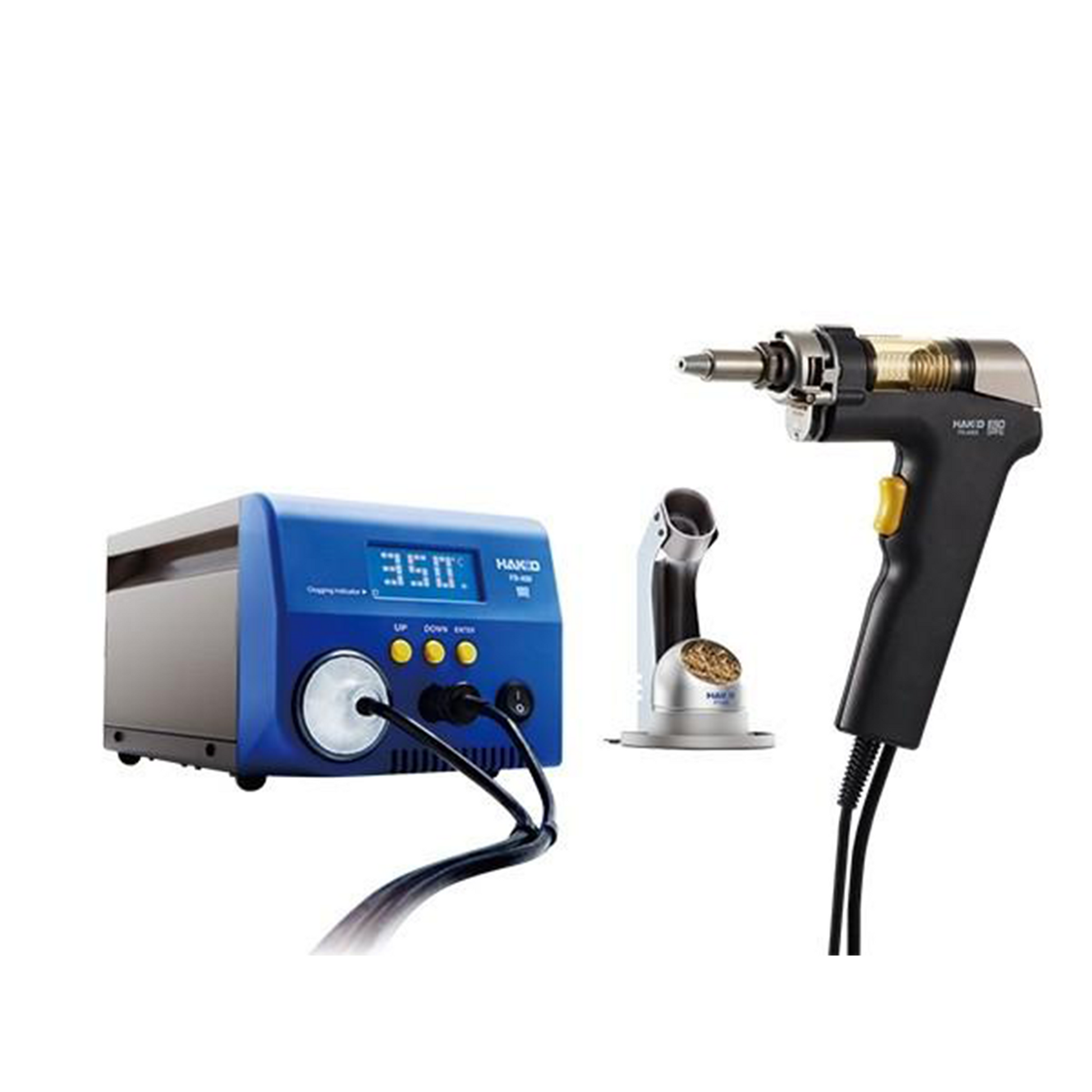

- Heavy-duty Desoldering Tool with built-in vacuum pump
- Quick and secure desoldering even on high heat capacity and high heat dissipation PWB with super power
- Secure desoldering with valve function
- Solder clogging was reduced featuring Anti Clogging Function
Please refer to the User Manual for detailed specifications.
Features
300 W tremendous power enables nearly impossible desoldering on PWB with high heat capacity and high heat dissipation property.
300 W tremendous power makes incredible heating.
Secure Desoldering, valve function that suctions with high pressure
- Suction starts 0.2 seconds after pulling the trigger for instance and high pressure suction to achieve complete desoldering.
Reduction of solder clogging
- Improved heating ability and Anti clogging function ensure suctioned solder be carried to filter pipe and reduce solder clogging.
Quick nozzle replacement with special tool
- Nozzle Quick Changer compatible handle (FR-4003) enables one-action nozzle replacement
Improvement in maintainability
- Easy heater replacement
- Tool box with maintenance kit
- New filter pipe 3 times larger
- larger filer and more transparency
Specifications
Model No. FR-400(Desoldering tool: FR-4003)
Power consumption: 320W
Temperature range: 350 to 500ºC
Temperature stability: ±5ºC at idle temperature
Station
Output voltage: AC 29V
Vacuum generator: Vacuum pump, double cylinder type
Vacuum pressure: Max. 80kPa (600mmHg)
Suction flow: 15L/min.
Dimensions: 166(W) × 137(H) × 264(D)mm
Weight: 5.7kg
Desoldering Tool
Power consumption: 300W (29V)
Nozzle to ground resistance: <2Ω
Nozzle to ground potential: <2mV
Heating element: Composite heater
Standard nozzle: Φ1.0mm type (No.N60-02)
Cord length: 1.2m
Total length: 183mm (with Φ1.0mm nozzle)
Weight: 270g (with Φ1.0mm nozzle)
* The suction flow is measured at the filter case suction port of station.
* Total length and weight (w/o cord, hose)
Packing List
- Station
- Desoldering tool（FR-4003）
- Power cord, Iron holder (with cleaning wire)
- Tool box (Cleaning pin for ø1.0 mm)
- Cleaning pin for heater
- Cleaning drill for ø1.0 mm
- Nozzle wrench
- Filter [qty 2]
- Ceramic paper filter [qty 4])
- Instruction manual
Accessories
Soldering Tips
| N60 Series |
|
| Nozzle |
- N60-01
- N60-02
- N60-03
- N60-04
- N60-05
- N60-06
- N60-07
- N60-08
- N60-09
|
Replacement Parts
|
Name
|
Specifications
|
|
FR4003-81
|
Desoldering tool FR-4003
* The replacement for FR4001-81.
300W (30V), w/Φ1.0mm nozzle
|
|
A5054
|
Heating element 300W (30V), for FR-4003
|
|
B5079
|
Enclosure pipe for FR-4001
|
|
B5184
|
Filter pipe assembly
* The replacement for B5081.
|
|
B5081
|
Filter pipe assembly
* Discontinued. The replacement is "B5184".
|
|
A5045
|
Ceramic paper filter for FR-4001 (qty 10)
* The replacement for A5019.
|
|
A5019
|
Ceramic paper filter (qty 10)
* Discontinued. The replacement is "A5045".
|
|
B5080
|
Pre-filter
|
|
A5017
|
Front holder
|
|
A5018
|
Filter holder
|
|
A5020
|
Filter (qty 10)
|
|
A1013
|
Diaphragm (qty 2)
|
|
A1014
|
Valve plate (qty 2)
|
|
C5011
|
Tool box
|
|
B5082
|
Nozzle wrench
|
|
B1087
|
Cleaning pin for nozzle Φ1mm
|
|
B1215
|
Cleaning pin for heating element
|
|
B1303
|
Cleaning drill for nozzle Φ1mm
|
|
B1306
|
Drill holder for nozzle Φ0.8/1mm
|
|
B1309
|
Drill (nozzle Φ1mm, qty 10)
|
|
599-029
|
Cleaning wire
|
|
FH400-82
|
Iron holder <w/ cleaning wire>
|
Optional Parts
|
Part No.
|
Name
|
|
C5045
|
Nozzle quick changer for FR-4003
|
|
B5227
|
Receptacle for C5045
|
|
B5229
|
Oval nozzle positioning jig
|
|
FH400-81
|
Iron holder <w/ cleaning sponge>
|
|
A1519
|
Cleaning sponge (yellow)
* The replacement for A1536.
|
|
B1086
|
Cleaning pin (nozzle Φ0.8mm)
|
|
B1088
|
Cleaning pin (nozzle Φ1.3mm)
|
|
B1089
|
Cleaning pin (nozzle Φ1.6mm)
|
|
B1302
|
Cleaning drill (nozzle Φ0.8mm)
|
|
B1304
|
Cleaning drill (nozzle Φ1.3mm)
|
|
B1305
|
Cleaning drill (nozzle Φ1.6mm)
|
|
B1307
|
Drill holder (nozzle Φ1.3/1.6mm)
|
|
B1308
|
Drill (nozzle Φ0.8mm, qty 10)
|
|
B1310
|
Drill (nozzle Φ1.3mm, qty 10)
|
|
B1311
|
Drill (nozzle Φ1.6mm, qty 10)
|
