- Use of high thermal efficiency N61 series nozzles
- A wide range of nozzles and shapes for secure desoldering
- Reduction of solder clogging by improved heating core
- Easy filter maintenance
- Safe and easy nozzle change with the nozzle wrench
Please refer to the User Manual for detailed specifications.
Packing List
| Packing List |
Part No. |
| Unit |
- |
| Pre-Filter |
B5104 |
| ø1.0mm Standard Nozzle |
N61-08 |
| Ceramic paper filter (L; 2pcs) |
A5044 |
| Nozzle wrench |
B5106 |
| Iron holder (simple type) |
C5003 |
| Cleaning pin for heating core |
B1085 |
| Cleaning pin for Φ1 mm nozzle |
B1087 |
| Instruction manual |
- |
Nozzles
| N61 Series |
|
| SS Type |
|
| S Type |
|
| Standard Type |
- N61-07
- N61-08
- N61-09
- N61-10
|
| Long Type |
- N61-11
- N61-12
- N61-13
- N61-14
|
| Oval Type |
|
Features
A wide range of nozzles and shapes for any desoldering
- N61 series nozzles can also be used for HAKKO FR-410 desoldering station.
- N61 series nozzles cannot be used for FR-300.
A wide range of nozzles and shapes for secure desoldering
- The nozzles lineup includes diameters from 0.6 mm to 1.6 mm and also oval shape nozzles.
- Desoldering on micro land and in fine pitch can be possible.
Equipped with high-precision temperature control function
- Uses HAKKO’s unique sensor feedback control method.
<>
Easy temperature control
- CAL enables fine adjustment of temperature
- LED indicators let you easily see when the heater is active and idling at your temperature setting.
Reduction of solder clogging by improved heating core
Easy filter maintenace
- The structure of the filter pipe is same as HAKKO FR-410 desoldering station.
- That makes it easier to clean the filter pipe compared to the previous model.
Quick Change Nozzle System provides speed and safety
- The Quick Change Nozzle System allows for a safer and simpler method to quickly remove nozzles for cleaning or replacement, even when the unit is hot.
Specifications

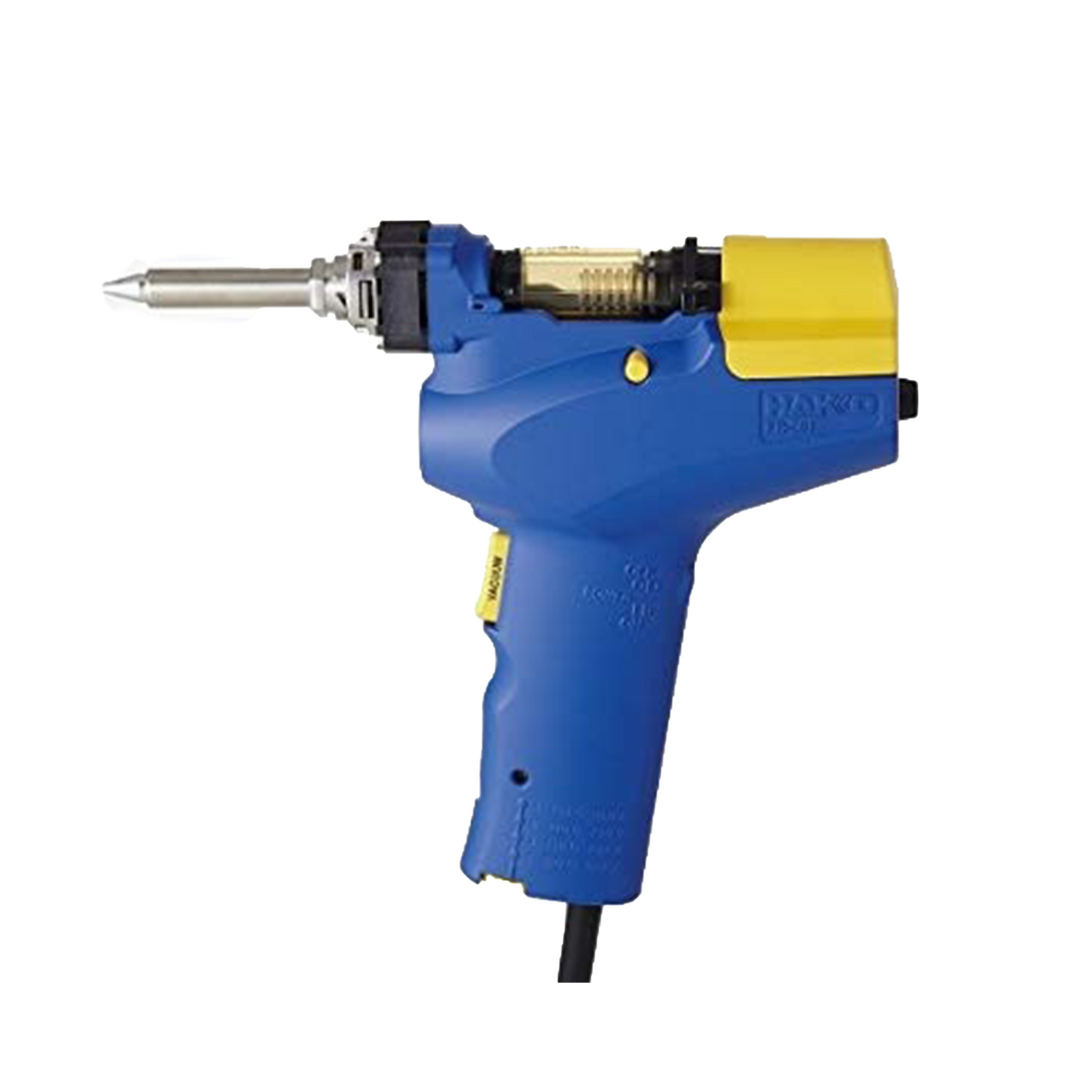

Model No. FR-301
- Power consumption: 230V 110W (50/60Hz)
- Temperature range: 350 to 500ºC
- Nozzle to ground resistance: <2Ω
- Nozzle to ground potential: <2mV
- Vacuum generator: Diaphragm pump
- Vacuum pressure: 81kPa (610mmHg)
- Suction flow: 11L/min.
- Heating element: Ceramic heater
- Standard nozzle: Φ1mm (No.N61-08)
- Dimensions: 215(W)×226(H) mm (with Φ1 mm (No.N61-08) nozzle)
- Weight: 0.52kg (with Φ1 mm (No.N61-08) nozzle)
* Total length and weight (w/o cord)
Replacement Parts
|
Name
|
Specifications
|
|
A5046
|
Heating element 100-110V
|
|
A5047
|
Heating element 120V
|
|
A5048
|
Heating element 127V
|
|
A5049
|
Heating element 220-240V
|
|
B5193
|
Enclosure pipe
|
|
B5185
|
Filter pipe assembly
* The replacement for B5105.
|
|
A5044
|
Ceramic paper filter-L (qty 10)
* The replacement for A1033.
|
|
B5104
|
Pre-filter
|
|
A5030
|
Front holder
|
|
A5031
|
Filter holder
|
|
B5194
|
Filter pipe
|
|
B5195
|
Back holder
|
|
B5023
|
Valve plate
|
|
B5024
|
Diaphragm
|
|
C5003
|
Iron holder simple type
|
|
B5106
|
Nozzle wrench
|
|
B1085
|
Cleaning pin for heating core
|
|
B1087
|
Cleaning pin for nozzle Φ1mm
|
|
C5042
|
Carrying case for for FR-301
|
Optional Parts
|
Part No.
|
Name
|
|
C5046
|
Nozzle quick changer for FR-4103, FR-301
|
|
B5228
|
Receptacle for C5046
|
|
B5231
|
Oval nozzle positioning jig for FR-301
|
|
C1100
|
Iron holder <w/ cleaning sponge>
|
|
A1042
|
Cleaning sponge
|
|
B1086
|
Cleaning pin nozzle Φ0.8mm
|
|
B1088
|
Cleaning pin nozzle Φ1.3mm
|
|
B1089
|
Cleaning pin nozzle Φ1.6mm
|
|
B1302
|
Cleaning drill nozzle Φ0.8mm
|
|
B1303
|
Cleaning drill nozzle Φ1mm
|
|
B1304
|
Cleaning drill nozzle Φ1.3mm
|
|
B1305
|
Cleaning drill nozzle Φ1.6mm
|
|
B1306
|
Drill holder nozzle Φ0.8/1mm
|
|
B1307
|
Drill holder nozzle Φ1.3/1.6mm
|
|
B1308
|
Drill (nozzle Φ0.8mm, qty 10)
|
|
B1309
|
Drill (nozzle Φ1mm, qty 10)
|
|
B1310
|
Drill (nozzle Φ1.3mm, qty 10)
|
|
B1311
|
Drill (nozzle Φ1.6mm, qty 10)
|
