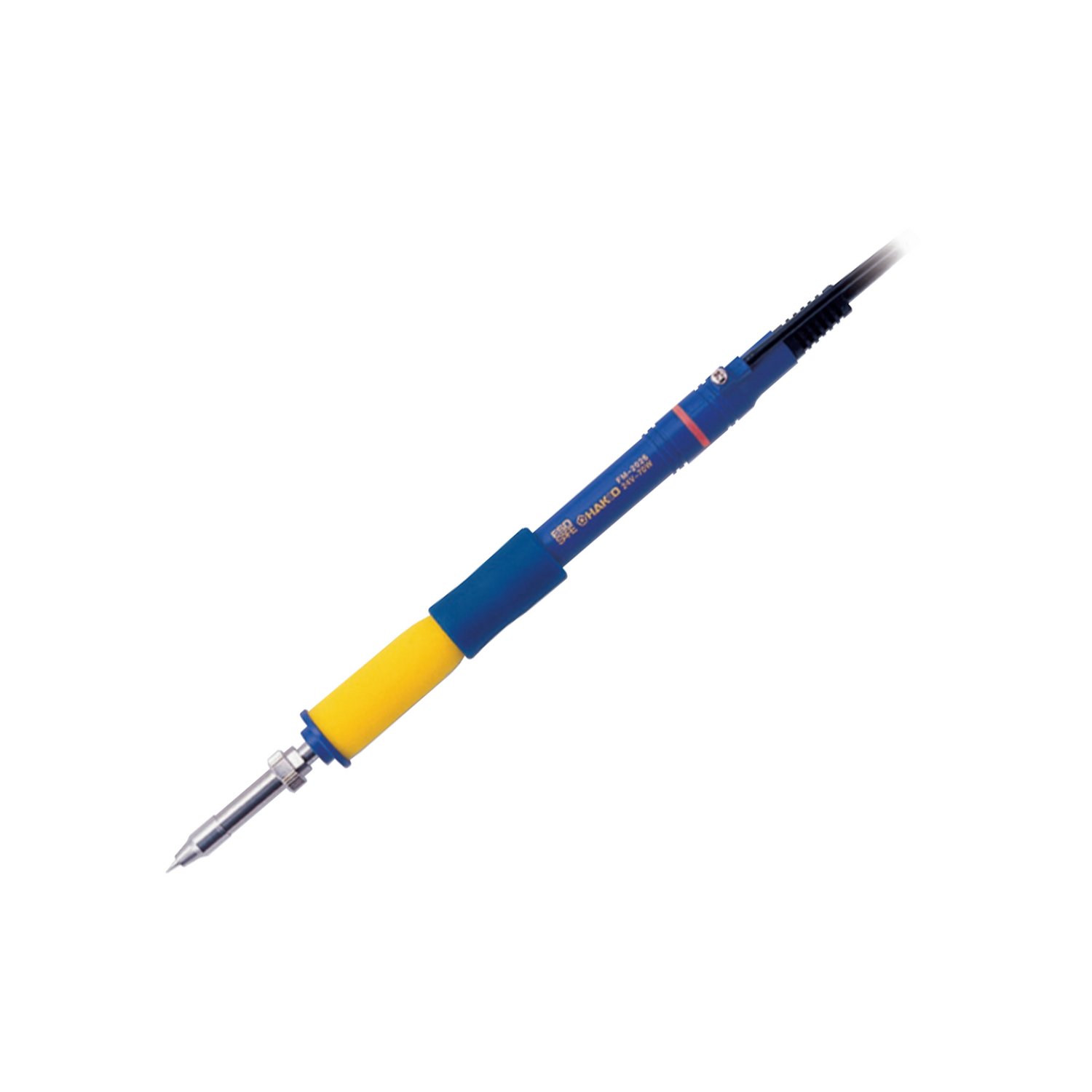

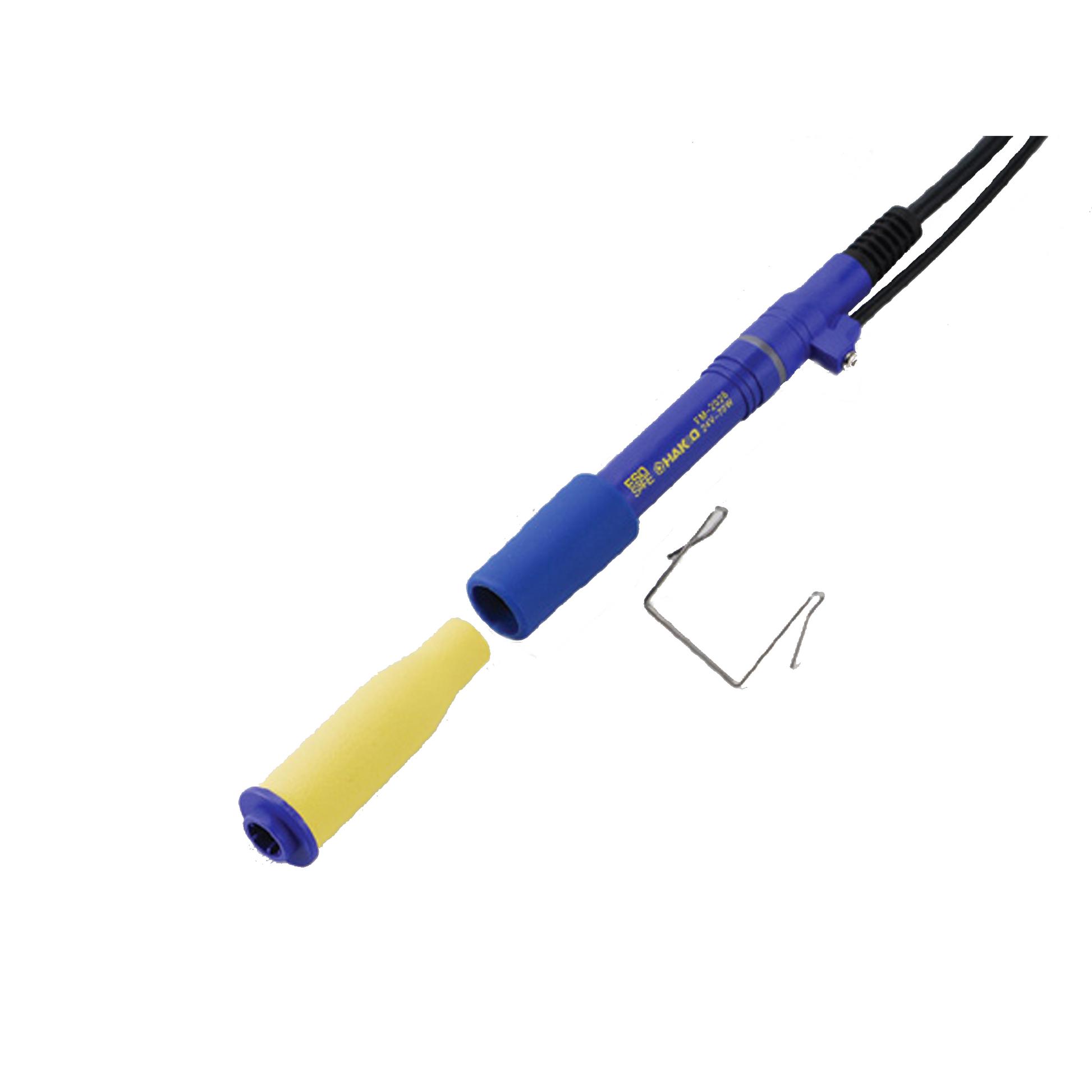

• Hakko N2 soldering iron FM2026 handpiece only for soldering printed circuit board for SMT assembly production line
  • Hakko Nitrogen soldering iron FM2026 handpiece only for soldering printed circuit board for SMT assembly production line

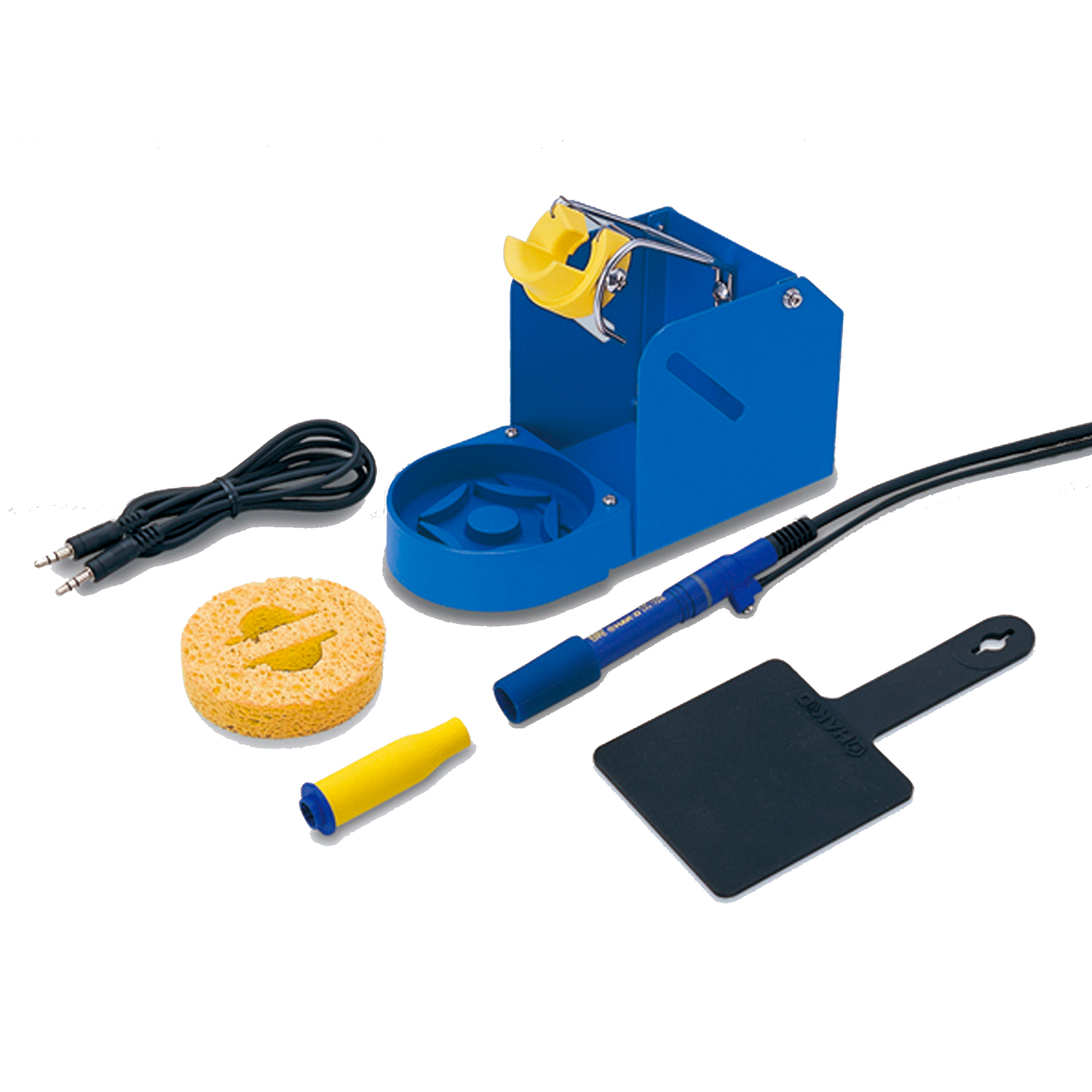

  • Hakko soldering iron FM2026 conversion kit Nitrogen soldering with nozzle for PCB SMT assembly production line. consist of soldering iron holder with cleaning sponge, soldering iron excluding tip, heat resistant pad, cable

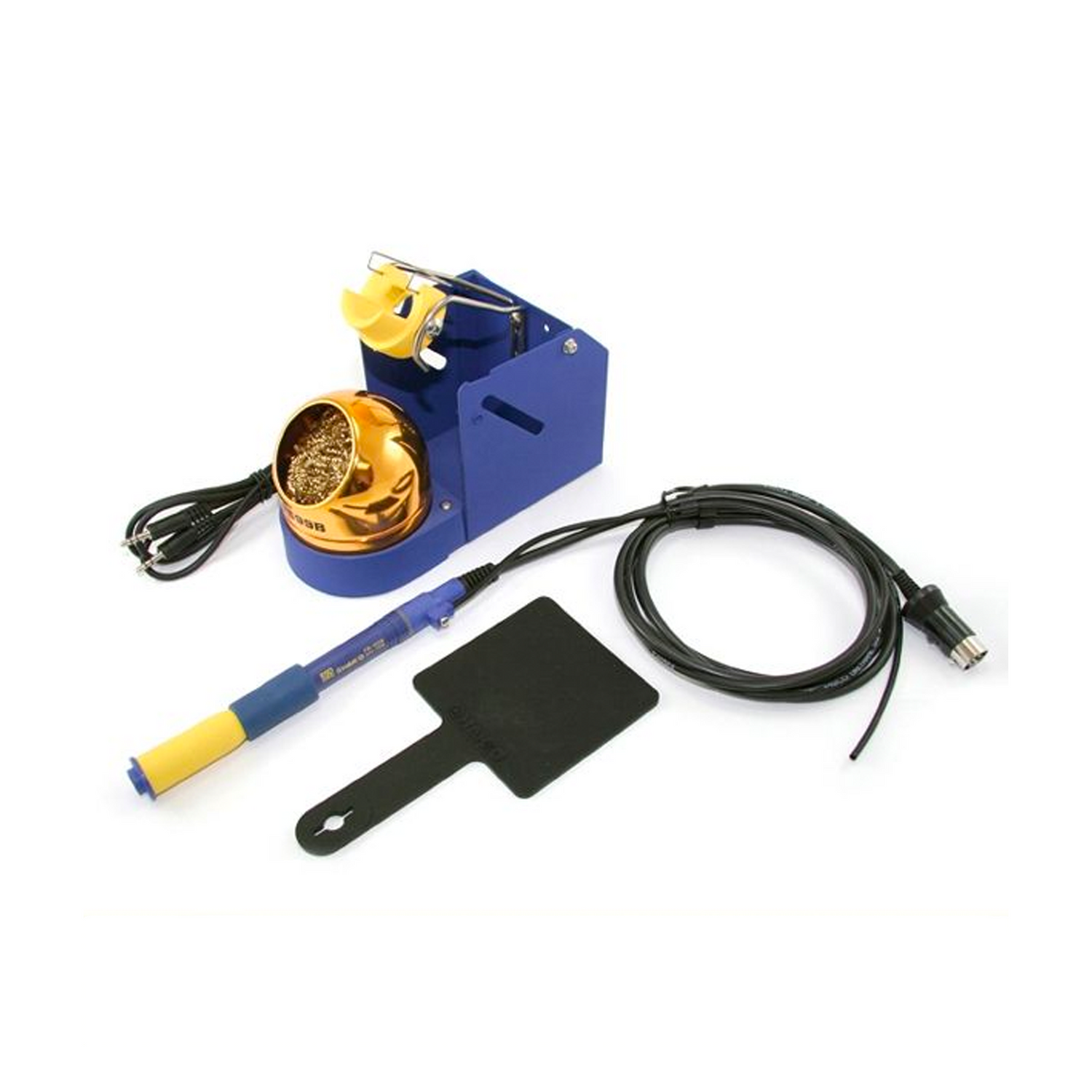

  • Hakko soldering iron FM2026 conversion kit N2 soldering with nozzle for PCB SMT assembly production line. consist of soldering iron holder with brass wire cleaning sponge, soldering iron excluding tip, heat resistant pad, cable
1 4

Hakko Products

FM-2026 N2 Soldering Iron 230V

FM-2026 N2 Soldering Iron 230V

$203.00 SGD
$203.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.
Select Model

AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS

Click here to shop compatible tips for FM-2026. Soldering Tips/Nozzles not included. To be purchased separately

Please refer to the User Manual for detailed specifications.

Packing List
  • Note: All units do not include a soldering tip or nozzle assembly. Please purchase it separately.
FM2026-02 Part No.
Connector Assembly Only FM2026-02

FM2026-03 Part No.
Connector Assembly FM2026-02
Sleeve Assembly (Yellow) B2765D
Sleeve Cover B2974
Retaining Clip B2791
Instruction Manual -

FM2026-04 / 05 Part No.
Connector Assembly FM2026-02
Sleeve Assembly (Yellow) B2765D
Sleeve Cover B2974
Connecting Cable B3253
Heat Resistant Pad B2300
Iron Holder with 599B (for FM2026-04) FH200-01
Iron Holder with Sponge (for FM-2026-05) FH200-02
Instruction Manual -
Product Info

Nitrogen gas (N2) soldering iron, used together with HAKKO

  • FM-202 (discontinued)
  • FM-203
  • FM-204
  • FM-205
  • FX-950 (discontinued)
  • FX-951
  • FX-952
Features

Preventing oxidation
The Nitrogen gas (N2) runs into the nozzle assembly and covers the soldering tip. This prevents the soldering tip and the heater from being readily oxidized and aids in preheating.

Improved wettability
A sufficiently hot soldering tip has a more efficient heat transfer, improving the solder wettability and spreadability. Heated N2 gas improves solderability, and prevents components from getting bridges when working even with lead-free solder or high-temperature solder.

Preheating effect
N2 gas assists soldering iron to heat the objects effectively. It contributes to work at lower setting temperature without spoiling work efficiency.

Compatible with N2 System
Can be connected with FX-780, FX-781, FX-791 to create an N2 System.

Specifications
  • Power consumption: 70W (24V)
  • Temperature range: 200 to 450ºC
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Composite heater
  • Cord length: 1.2m
  • Total length: 205mm (with 2.4D tip, without cord and tube)
  • Weight: 45g (with 2.4D tip and nozzle assembly C, without cord and tube)
  • Note: Do not set the temperature above 400ºC
Accessories

 Soldering Tips

  • T13 Series for Asia, Japan, Oceania & Other countries.
  • T17 Series for North America & EU.

For HAKKO FM-2026, soldering iron tips and nozzle assembly are not supplied as accessories, kindly purchase them separately.

Please note that you'll need both the tip AND its compatible nozzle assembly for the soldering iron to function (Shape + Assembly Unit).

Shape BCM/CM Assembly Unit
T13-BCM2 Shape-2BC with indent B2706 Nozzle assembly A
T13-BCM3 Shape-3BC with indent B2900 Nozzle assembly G
Shape BC/C Assembly Unit
T13-BC2 Shape-2BC
T13-BCF2 Shape-2BC (Tinned cut surface only)		 B2706 Nozzle assembly A
T13-BC1 Shape-1BC,
T13-BCF1 Shape-1BC (Tinned cut surface only)		 B2899 Nozzle assembly F
T13-BC3 Shape-3BC,
T13-BCF3 Shape-3BC (Tinned cut surface only)		 B2900 Nozzle assembly G
Shape B Assembly Unit
T13-B2 Shape-0.5B B2708 Nozzle assembly C
T13-BL Shape-BL B2898 Nozzle assembly E
Shape D Assembly Unit
T13-D16 Shape-1.6D,
T13-D24 Shape-2.4D		 B2708 Nozzle assembly C
T13-D08 Shape-0.8D B2709 Nozzle assembly D
Shape J Assembly Unit
T13-J02 Shape-0.2J B2707 Nozzle assembly B
Shape K Assembly Unit
T13-KU Shape-KU B2901 Nozzle assembly H
T13-KR Shape-KR B2902 Nozzle assembly I
T13-KF Shape-KF B2923 Nozzle assembly J

Replacement Parts

Part Number Product Name
B2765D Yellow Sleeve Assembly
B2974 Sleeve Cover
FH200-01 Iron Holder with Cleaning Wire and Power Save Function
FH200-02 Iron Holder with Cleaning Sponge and Power Save Function
B2791 Retaining Clip
B3253 Connecting Cable
B2300 Heat Resistant Pad
599B-02 599B Tip Cleaner (Metal Cleaning Wire)
599-029 Metal Cleaning Wire
B2756 Tip Tray
B2768D Orange Sleeve Assembly
B2769D Blue Sleeve Assembly
B2998 Nitrogen Guard (Discontinued)
