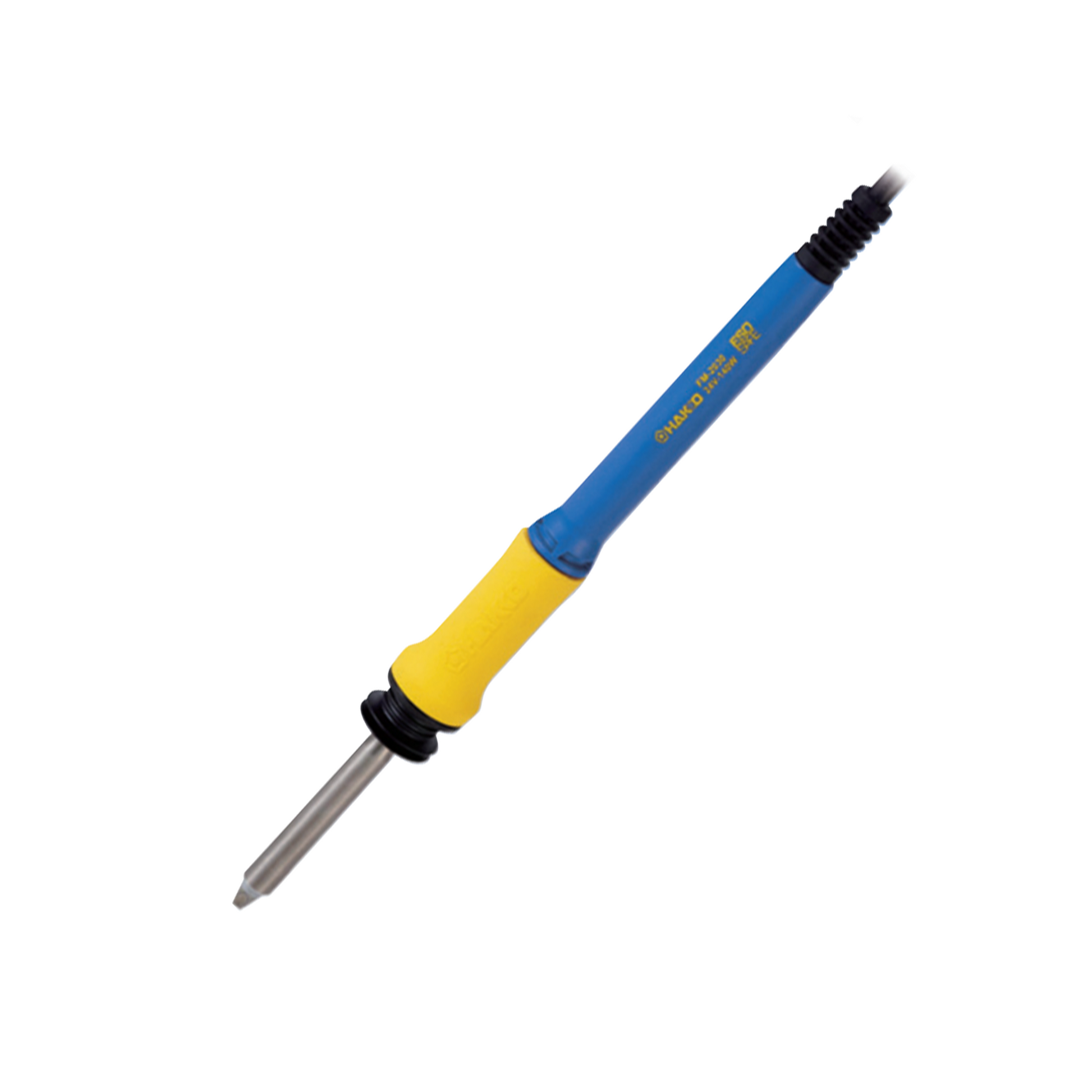

FM-2030 Heavy Duty Soldering Iron Handpiece / Conversion Kit 230V

FM-2030 Heavy Duty Soldering Iron Handpiece / Conversion Kit 230V

Regular price $148.00 SGD
Regular price Sale price $148.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.
Model

AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS

HEAVY DUTY SOLDERING IRON

The Hakko FM-2030 Soldering Iron provides a higher mass tip with double the power of conventional tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.

  • High powered 140W soldering iron with high heat capacity
  • Best suited for soldering of power-supply boards, heat sinks, shield cases and coaxial cables
  • Also applicable for multilayer boards with micro components

Please refer to the User Manual for detailed specifications.

Features

Compatible with the Hakko FM-203 soldering station and FM-206 rework system

High-powered 140W soldering iron with high heat capacity.
Composite-type soldering iron which has an iron tip with a built-in heater. Features the versatility to enable the soldering of a variety of components ranging from large scale components such as power supply boards, heat sinks, shield cases and coaxial cables, which require a high amount of heat, to micro components mounted on multilayer boards.

Ergonomic Design
While providing high heat capacity, the grip is thin and easy to hold, exactly as the FM-2027, and provides two design features that protect users' hands from high radiation heat.

16 types of tips are available (T22 Series - not included).
This lineup enables soldering of components of various sizes ranging from micro to large components.

Working characteristics comparison graph. High-powered soldering iron also contributes to reductions in production time.

IMPORTANT. PLEASE READ:
The FM-2030 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.

Packing List
FM2030-01 Handpiece Only
Part No.
Handpiece FM2030-01

FM2030-04 Conversion Kit
Part No.
Handpiece FM2030-01
Iron Holder with 599B  FH200-01
Connecting Cord B3253
Heat Resistant Pad B2300
Instruction Manual -
Specifications
Model FM-2030
Part No.

FM2030-01

Power Consumption 140W / 24VAC
Tip to Ground Resistance <2 ohms
Leak Voltage <2mV
Total Length (w/o cord) 224mm (8.8 in.)
Weight (w/o cord) 41g (1.4oz)
Cord 1.3m (4.3 ft.)
Tips

T22 Series (not included)

Accessories

Soldering Tips

For the HAKKO FM-2030, soldering iron tips are not supplied as accessories. Please purchase "T22 Series" soldering iron tips separately.

T22 Series. Shape B/C/D/J/K

Replacement Parts

Part No.

Name

FM2030-04

HAKKO FM-2030 conversion kit

FM2030-01

Soldering iron FM-2030

B3687

Nipple

B2578

O-ring

FH200-01

Iron holder <w/ cleaning wire>

B2791

Retaining clip

599B-02

HAKKO 599B tip cleaner

599-029

Cleaning wire

B3253

Connecting cable

B2300

Heat resistant pad
