Hakko Products

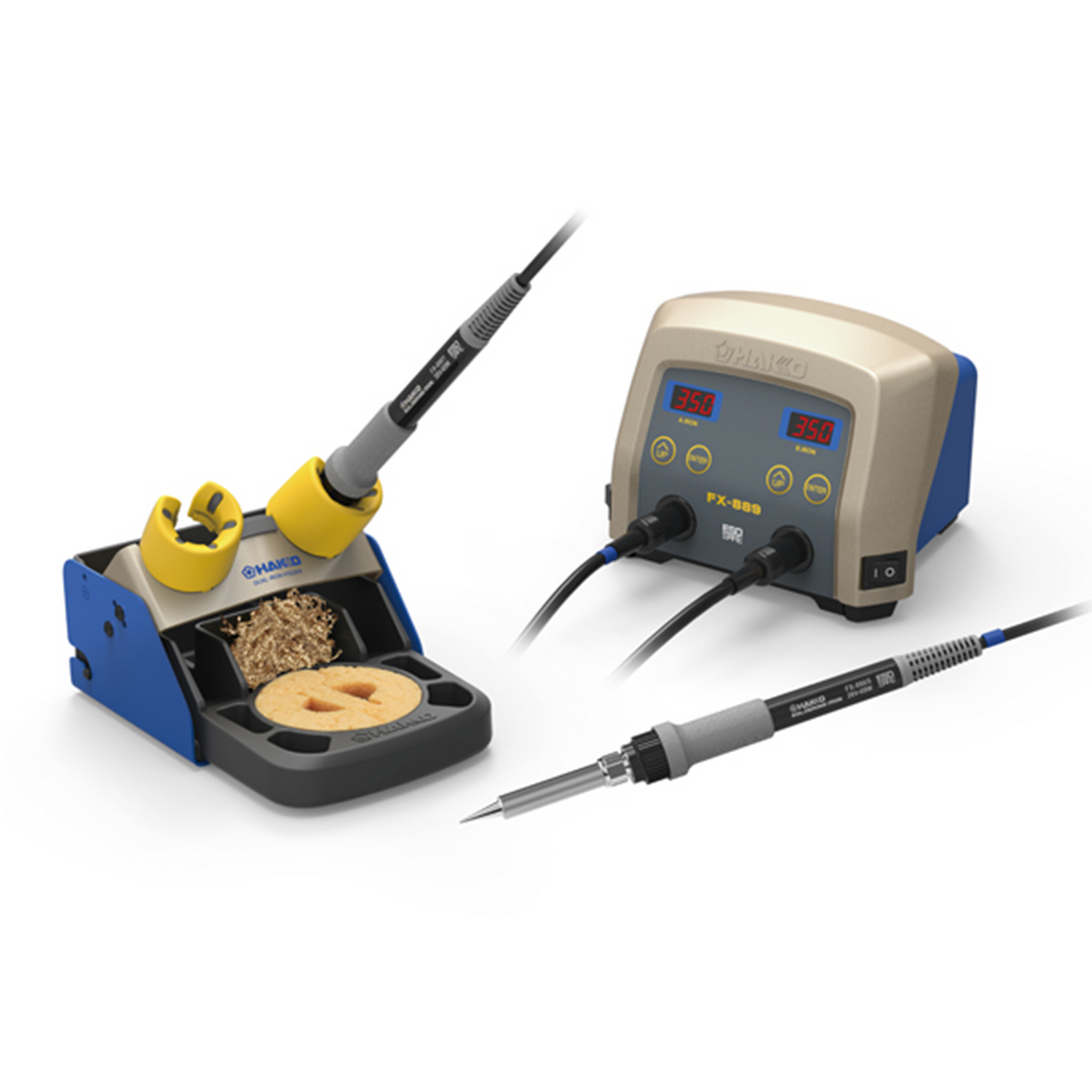

FX889-11 Soldering Station 230V

FX889-11 Soldering Station 230V

Regular price $540.00 SGD
Regular price $651.00 SGD Sale price $540.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

Click here to shop compatible soldering tips for FX-889

  • Dual port station allows 2 handpieces to work simultaneously
  • Many functions - Adjust mode, Preset Mode, Password function
  • N2 iron (FX-8802) as an optional accessary

Please refer to the User Manual for detailed specifications.

Features

FX-889 has a wide variety of handpiece combinations.

The HAKKO FX-889 has 2 ports to support a variety of handpieces such as soldering irons of different power profile, gun type iron, tools for SMD rework.

Great cost performance

Excellent thermal conductivity: T18 and T19 tip series are designed to have improved thermal conductivity from their previous models by reviewing both external and internal structures.

Digital display

Digital display shows setting temperature at a glance.

Password function

Settings can be locked using a password to prevent them from being changed unexpectedly.

Preset mode

This feature is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape. Simply select the desired temperature from a selection of preset temperatures registered in advance. (Up to 5 preset temperatures can be registered.)
Preset mode can save your trouble and improve workability.

Adjustment mode

Temperature adjustment* is an essential part of any strict quality control system. With adjustment mode, what used to be a troublesome procedure is now as simple as entering the measured tip temperature to FX-889.

User-Friendly Design

1.Space-saving design

The reduced foot print is smaller than 2 of FX-888D and its iron holder.
Efficient setup is available even on smaller workbench.

2.Power-saving design

Independent switches cut the power for each iron when not in use.
Power-saving design minimizes standby electricity.

3.Superior operability

Four buttons were symmetrically placed at the both sides on the front panel. The two buttons on each side allow simple and intuitive operation.
A color band can be attached to the handle, and this makes it possible to see at a glance which side it is connected to.

4.Improved iron holder

Convenient pockets to stock soldering tips
Three different ways for tip cleaning with provided cleaning tools
Simple and easy cleaning of iron holder inside by removing holder base

Specifications

Model No. FX-889

  • Power consumption: 135W
  • Temperature range  50 to 480ºC
  • Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)

Station

  • Output voltage: AC 26V
  • Dimensions: 157(W)×121(H)×149(D)mm
  • Weight: 2.1kg

Soldering Iron

  • Power consumption: 65W (26V)
  • Tip to ground resistance: <2Ω
  • Tip to ground potential: <2mV
  • Heating element: Ceramic heater
  • Standard tip: Shape-B (No.T18-B)
  • Cord length: 1.2m
  • Total length: 217mm (with B tip)
  • Weight: 46g (with B tip)

* Total length and weight (w/o cord)

Packing List
Soldering Station FX-889
Handpiece FX-8801
Dual Iron Holder (w sponge, wire, rubber plate) FH-801
Power Cord B2419
Color Band (2 pieces) B5125
Instruction Manual -
Accessories
Soldering Tips
T18 Series
Shape BC/C
  • T18-C05
  • T18-C08
  • T18-C1
  • T18-C2
  • T18-C3
  • T18-C4
  • T18-C5
  • T18-CF1
  • T18-CF15
  • T18-CF2
  • T18-CF3
  • T18-CF4
  • T18-CSF25
  • T18-S6
Shape B
  • T18-B
  • T18-BL
  • T18-S4
  • T18-SB
Shape D
  • T18-D08
  • T18-D12
  • T18-D16
  • T18-D24
  • T18-D32
  • T18-DL12
  • T18-DL2
  • T18-DL32
  • T18-S3
  • T18-S9
Shape I
  • T18-I
Shape J
  • T18-BR02
Shape K
  • T18-K
Parts

Replacement Parts

Name

Specifications

FX8801-01

Soldering iron FX-8801, 65W (26V), w/B tip

A1560

Heating element 65W (26V)

B1785

Nut

B3469

Enclosure pipe

B2022

Nipple

B5125

Color band (qty 2)

FH801-81

Iron holder <w/ cleaning sponge, cleaning wire>

A1519

Cleaning sponge
* The replacement for A1536.

A1561

Cleaning wire for FH-800

Optional Parts

Part No.

Name

FX8802-01

Soldering iron FX-8802, 65W (26V), w/B tip, for N2 soldering

FX8803-02

Soldering gun FX-8803, 65W (26V), w/3CF tip

FX-8803 needs to sit on a dedicated iron holder C1437.

FX8803-03

Soldering gun FX-8803, 65W (26V), w/3CF tip

FX8803-04

Soldering gun FX-8803, 65W (26V), w/3CF tip

FX8804-02

SMD hot tweezer FX-8804, 65W (26V), w/2L tip

FX-8804 needs to sit on a dedicated iron holder FH800-04BY.

FX8804-03

SMD hot tweezer FX-8804, 65W (26V), w/2L tip

FX8804-04

SMD hot tweezer FX-8804, 65W (26V), w/2L tip

FX8805-01

Soldering iron FX-8805, 65W (26V), w/B tip, for soldering (L type)

C1437

Iron holder <w/ cleaning sponge>, for 951,952,958,959 (Discontinued) and FX-8803

FH800-04BY

Iron holder <w/ cleaning sponge>, blue & yellow, for FX-8804
