• Hakko FR872 Desoldering/Rework Preheater Preheating Station for SMD components PCB SMT assembly production line
1 1

Hakko Products

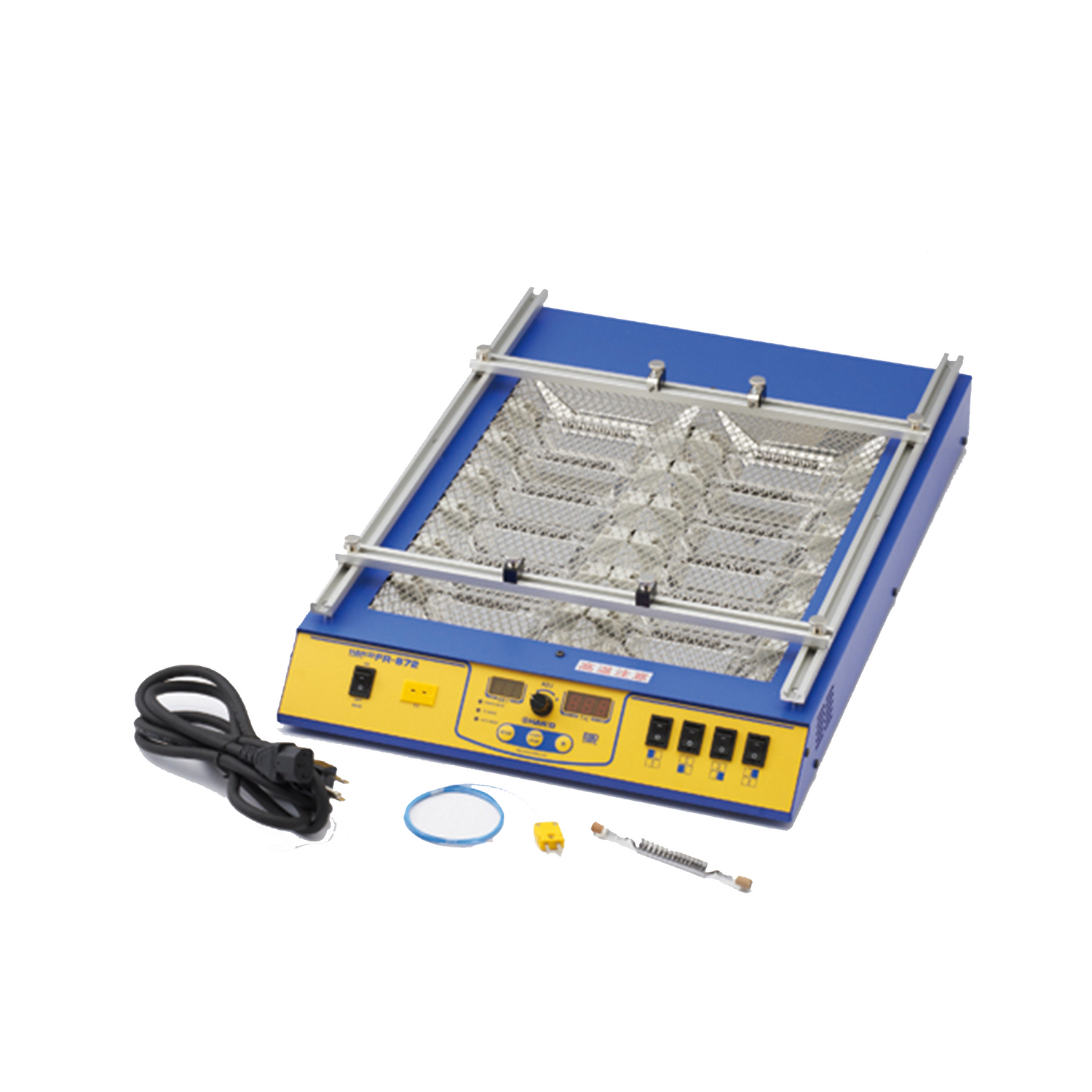

FR872-07 IR Preheater 230V

FR872-07 IR Preheater 230V

$1,760.00 SGD
$2,350.00 SGD $1,760.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS

  • Large-size Preheater for PWB up to 330mm x 250mm
  • 4 Independent switchable work grid partitions
  • Infrared carbon heater
Features

New large-size preheater for large-size boards to make your job easier

  • Larger heating area for large-size boards

Four-Zone heating area
  • The heating area has been split into four zones that can be independently activated, making it possible to heat all of the board or only necessary areas when reworking large boards or to turn off unnecessary areas when reworking small boards.

High-efficiency carbon heater
  • New high-efficiency heating elements increase preheat performance striking a balance to mitigate IR shadowing while reducing glare from full spectrum heaters.

Four selectable modes to fit your process

Adjustable board attachment guides

  • Board attachment guides can be adjusted easily to suit the size of the board. Boards can be attached and removed easily after the guides have been adjusted to fit.
Specifications

Model No. FR-872

  • Power consumption : AC230V：1,250W
  • Operation mode : Power mode, T/C mode Auto power mode, auto T/C mode
  • Setting range : Power mode 0 to 100%
  • Setting range : T/C mode 50 to 200ºC
  • Setting range : Set time 0 to 999seconds
  • Dimensions : 230V：360(W)×97(H)×524(D)mm
  • Weight : 5.6kg

Heating element : High efficiency carbon heaater

  • Effective heated area : 224(W)×266(D)mm
  • Heater area dimensions : 286(W)×350(D)mm
  • Heater zone : 4
  • Temperature sensor : K-type thermocouple
  • Heater lifetime : 2,100hours
  • Heater control : Power mode : Percentage-based system T/C mode : PID control
  • External connections : Start signal input possible
Packing List

Unit, Thermocouple (type K), Power cord, Heater lamp (spare), Instruction manual

Accessories

Replacement Parts

Name

Specifications

A5003

Heating element 100-120V

A5004

Heating element 200-240V

B3516

Thermocouple


Options

Part No.

Name

B3686

Connecting cable
