• Hakko IR pre-heater FX870B digital system lead free ESD safe RoHS compliant 2-independent switchable work grid partitions.
1 1

Hakko Products

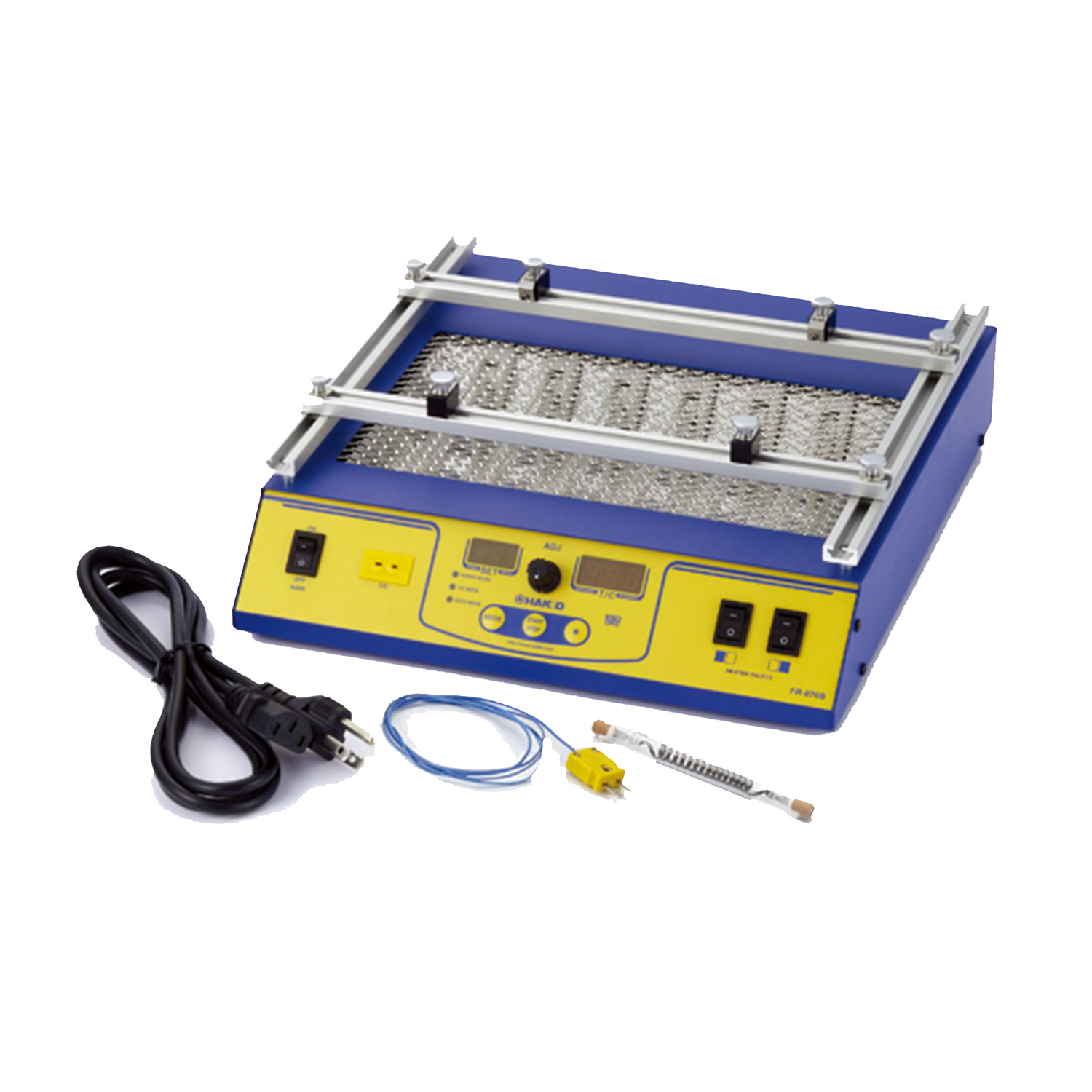

FR870B-06 IR Preheater 230V

FR870B-06 IR Preheater 230V

$1,350.00 SGD
$1,880.00 SGD $1,350.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS

  • Infrared pre-heater that provides the optimal heating effect over the whole workpiece surface
  • 2 Independent switchable work grid partitions
  • Infrared carbon heater
Features

Carbon heaters lamps provide powerful support for insufficient heat when reworking and mounting post-production add-ons

Entire work surface heats rapidly for instant use and improved efficiency

  • Six carbon heaters let you preheat the whole board in next to no time after turning the power on.
  • Full-board heating and quick temperature ramping let you get the job done quickly when reworking or mounting post-production components to multilayer substrates that require greater thermal capacity.
  • As it does not contaminate the air, the HAKKO FR-870B also offers powerful support for a clean workplace environment in industrial applications.

Non-contact system can be used with double-sided boards

  • Non-contact system allows preheating of double-sided boards, which hot plates cannot handle.

Set thermal profiles

  • Auto mode step-heating method (maximum of three steps/step 1-3) heats PWBs slowly and evenly, letting you transmit 100% of the heat energy from a rework system and soldering iron.
  • You'll never be forced to work with a higher set temperature due to insufficient heat again.

Board attachment system facilitates continuous work

  • Once a PWB is positioned, boards of the same dimensions can be removed or attached in a single motion. This design greatly facilitates continuous work.
Specifications

Model No. FR-870B

Power consumption: AC230V 1,240W

Operation mode: Power mode, T/C mode, Auto power mode, auto T/C mode

Setting range : Power mode 0 to 100%

Setting range : T/C mode 50 to 200ºC

Setting range : Set time 0-999seconds

Heating element: Carbon heater

Effective heated area: 190(W) × 80(D) mm

Heater area dimensions: 248(W) × 140(D)mm

Heater zone: 2

Temperature sensor: K-type thermocouple

Heater lifetime: 2,100hours

Heater control: Power mode : Percentage-based system, T/C mode : PID control

External connections: Start signal input possible

Dimensions: 296(W) × 100(H) × 311(D) mm

Weight: 3.2kg

Packing List

Unit, thermocouple (type K), power cord, heater lamp (spare), instruction manual

Accessories

Replacement Parts

Name

Specifications

A5003

Heating element 100-120V

A5004

Heating element 200-240V

B3516

Thermocouple


Optional Parts

Part No.

Name

Specifications

B3686

Connecting cable (FM-206-to-FR-870/FR-870B/FR-872)
