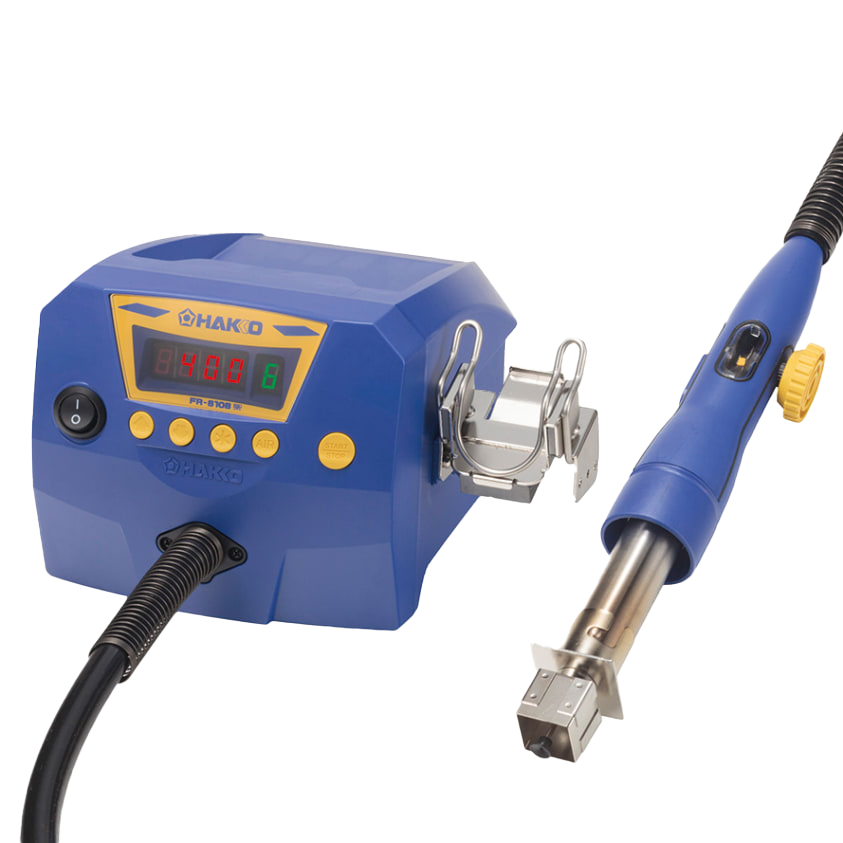

FR810B-19 Rework Station

FR810B-19 Rework Station

$945.00 SGD
$1,050.00 SGD $945.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.

AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS

  • 670W high power and large volume hot air improves work efficiency. Vacuum pick up function for easy and safe removal of components.

View product brochure

Shop compatible nozzles for FR-810B:

*A 4mm nozzle is included. Others to be purchased separately

N51 Nozzles Nozzles
BGA N51-10 to N51-26
Single N51-01 to N51-04
Bent Single N51-05
Hot Air Series (Conventional)
QFP A1125B, A1262B, A1126B, A1128B, A1127B, A1261B, A1129B, A1263B, A1265B, A1203B, A1254B, A1215B, A1108B, A1181B, A1182B
SOP A1131, A1132, A1133, A1134, A1258B, A1260B, A1257B, A1259B
TSOL A1185B, A1186B, A1187B
PLCC A1188B, A1140B, A1141B, A1139B, A1135B, A1136B, A1137B, A1138B, A1189B
SOJ A1214B, A1183, A1184B
BGA A1470, A1471, A1472, A1473, A1474, A1475, A1476, A1477, A1478
Single A1124B, A1130, A1142B, A1190, A1325
SIP A1191, A1192
Packing List
Packing List Part No.
Station with handpiece -
Nozzle (4mm dia.) -
Handpiece/Iron holder B5048
Vacuum pipe control knob L (with screw) B3023
Pads (3mm dia., 5mm dia., 7.6mm dia. [qty 2 each]) A1520 (3.0mm)
A1439 (5.0mm)
A1438 (7.6mm)
Heat resistant pad B2300
Power Cord -
Temperature distribution chart -
Instruction manual -
Features

High power and large air volume - Further evolution of SMD rework station

High power and large volume hot air for quick removal of components
FR-810B is the tool that can provide high power hot air and high volume airflow to rework on P.W.B. with high heat capacity.

Improving work efficiency
The high volume airflow and high output of FR-810B make it possible to perform the same work in only one-third of the time required when using a conventional model. This reduces the thermal impact on boards and components.

Improvements in FR-810B
On top of the features of FR-810, high power and large air volume, the new functions of vacuum pickup and pickup indicator have been given to FR-810B.
The 2 new functions make it possible to remove a component without damaging PWB.

New type of nozzles for improvement of temperature characteristics
The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzle)

Vacuum pickup function
The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.

Pickup indicator
By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible.

Use of the conventional HAKKO nozzles
Align the projection part, attach the conventional nozzle to the heater pipe.

For FR-810:
The heater pipe of HAKKO FR-810 (discontinued) has two parts. In order to use the conventional nozzle, put the conversion adapter on the heater pipe that was included in your purchased HAKKO FR-810 as one of standard accessories.

Simple nozzle removal and easy maintenance
Nozzles can be quickly changed for many different types of components.
In addition, conventional nozzles are compatible. Heaters can also be easily and securely replaced.

  • Quick-change N51 nozzles
  • Simple tool-free removal and attachment.
  • Simple heater replacement
  • Simply remove four screws to replace heater.

Timer function
Timer function is to control the time of operation.
This can help to prevent parts from overheating and can improve the overall quality of rework.

Chain presets function for making a simple thermal profile
The chain presets function is to make a simple thermal profile by combining several preset conditions. (Up to 5 steps) This can improve work efficiency by standardizing work time, avoiding overheating, improving repeatability of operation, and making difficult rework jobs easy.

Auto sleep and auto shutoff functions
To ensure safety and conserve power, when the handpiece is placed in the handpiece holder, the auto sleep function will be activated and it will start cooling automatically. If the handpiece has not been removed from the handpiece holder (e.g. Using it in a rework fixture) and it has been idle for 30 minutes, auto shutoff function will be activated. It will be automatically powered off. Access to settings can be restricted by the password function.

Controlled work conditions
With the use of grip fixture, board holder and bottom heater, work conditions can be controlled even more strictly.
A low cost rework system can be assembled with grip fixture, board holder and bottom heater.

Grip Fixture M
Recommended if a bottom heater is not required or in case of use of a bottom heater other than the dedicated model for FR-811.
Board Holder
Makes it easy to set and remove a PWB and to make fine adjustments after setting.
Board Clip
Accepts even irregular-shaped PWB.
Board Support Unit
Supports PWB from underneath to minimize warping.

    Specifications

    Power consumption

    • AC220V：1,100W
    • AC230V：1,200W
    • AC240V：1,300W

    Temperature range: 50 to 600℃

    Station

    • Power consumption: 30W
    • Air flow: 1-9（5 to 115L/min）L/min.
    • Dimensions: 160(W)×145(H)×220(D)mm
    • Weight: 1.5kg

    Handpiece (Hot air)

    Power consumption

    • AC220V：1,070W
    • AC230V：1,170W
    • AC240V：1,270W
    • Standard nozzle 4mm dia. (N51-02)
    • Total length 250mm
    • Weight 180g

    *Total length and weight for handpiece are measured without cord and standard nozzle.
    Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.

    Replacement
    Part No. Product
    A1438 Pad (7.6mm dia, 5pc)
    A1439 Pad (5.0mm dia, 5pc)
    A1520 Pad (3.0mm dia, 5pc)
    B3023 Vacuum pipe control knob (L) with screw
    B5048 Iron Holder
    B2300 Heat Resistant Pad
    A5024 Heating Element (220-240V)
    B5045 Pipe
    B5049 Mica with heat protection sleeve

    Optional Parts

    Part No. Product
    B5126 Air Guard Assembly with Fixing Bracket
    C5027 Board Holder
    B5098 Board Clip
    B5136 Board Support Unit
    B5137 Rubber Feet (4 piece)
    C5028 Grip Fixture M (with hexagon wrench, o-ring, tray)
    C5029 Grip Fixture L (with hexagon wrench, o-ring)
    A5027 Slide Gear
    B5138 Positioning Unit
    B5139 Tray
    B5140 Tray Assembly
