FM-2024 Desoldering Tool / Conversion Kit 230V

FM-2024 Desoldering Tool / Conversion Kit 230V

Regular price $313.00 SGD
Regular price Sale price $313.00 SGD
Sale Make an Enquiry
Shipping calculated at checkout.
Model

AVAILABILITY: PRE-ORDER | LEAD TIME: 8-16 WEEKS

  • Integrated desoldering unit equipped with nozzle with built-in heater provides excellent thermal recovery
  • Nozzle can be replaced with simple one-touch operation
  • Used together with an FM Series station
Features

Choose station to suit the operation

Specifications vary by station combined.

Vacuum pump type desoldering tool

  • HAKKO FM-204 Vacuum pump type
  • HAKKO FM-206 (3-handpiece insertion, optional soldering, SMD rework possible)

Distribution equipment for compressed air is required.

  • HAKKO FM-202 (Discontinued)
  • HAKKO FM-203(2-handpiece insertion, optional soldering, SMD rework possible)
  • Two power receptacles are required.
  • One unit can serve dual usage of Gun/Straight configurations
  • The composite nozzle ensures superior thermal recovery
  • Lightweight design ESD safe by design
  • Nozzle cartridge can be replaced even before the nozzle becomes cool.
Packing List

Nozzles not included, kindly purchase separately.

FM2024-02 (for FM-204) Part No.
Desoldering Tool FM-2024
Handle B2872
Filter Pipe Assembly A1511

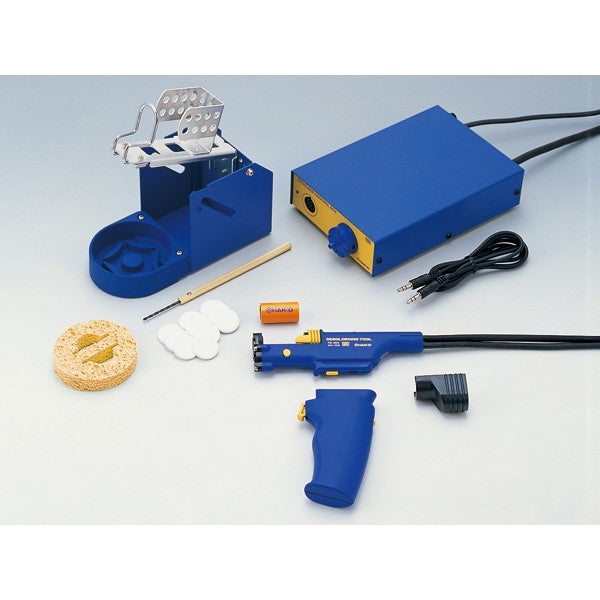

FM2024-28 (for FM-203) Part No.
Desoldering Tool FM-2024
Handle B2872
Filter Pipe Assembly A1511
Iron Holder FH200-05
Desolder Control Box (DCB) -
Cleaning Drill B2873
Ceramic Paper Filter A1613
Nozzle Remover B2876
Connecting Cable B3253
Instruction Manual -

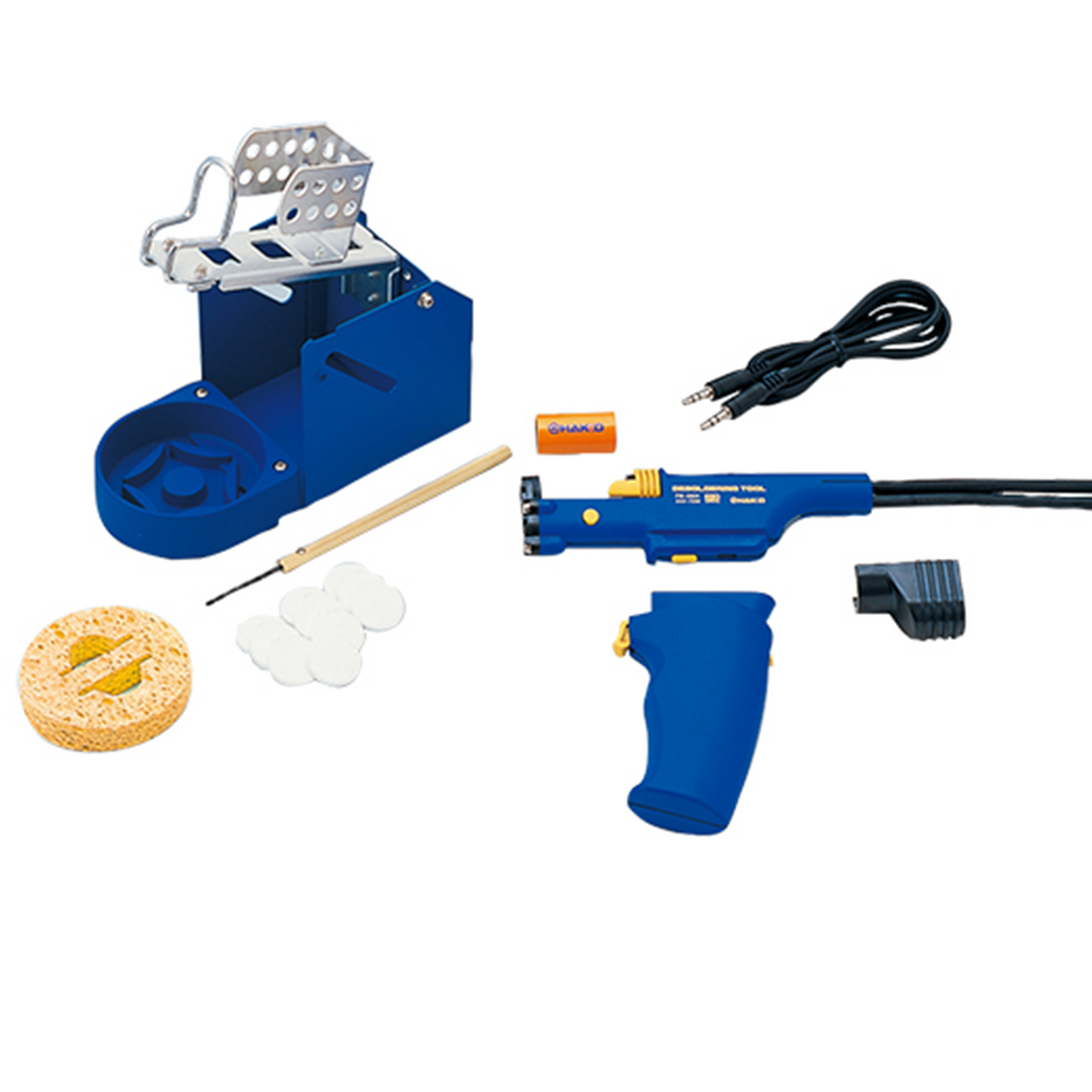

FM2024-44 (for FM-206) Part No.
Desoldering Tool FM-2024
Handle B2872
Filter Pipe Assembly A1511
Iron Holder FH200-05
Cleaning Drill B2873
Ceramic Paper Filter A1613
Nozzle Remover B2876
Connecting Cable B3253
Instruction Manual -
Specifications

Model No. FM-2024

  • Power consumption: 70W (24V)
  • Temperature range: 350 to 450ºC
  • Nozzle to ground resistance: <2Ω
  • Nozzle to ground potential: <2mV
  • Heating element: Composite heater
  • Cord length: 1.2m
  • Total length: 180mm (with Φ1.0mm nozzle)
  • Weight: 65g (with Φ1.0mm nozzle)

* Total length and weight (w/o cord, hose)

DCB (Desolder Control Box)

  • Power Consumption: 12W
  • Output: 24V
  • >Vacuum Generator/Vacuum Pressure: Ejector type Max. 93kPa (700mmHg)
  • Suction Flow: 20L/min
  • Tip to Ground Potential: < 2mV
  • Applied Air Pressure: 490kPa (5.0kgf/cm2) When in use (trigger or button is pressed)
  • Compressed Air Consumption: 46L/min
  • Outer Dimensions: 119(W) x 45(H) x 172(D)mm
  • Weight: 1.2kg
Accessories

Soldering Tips

N1 Series
Nozzle
  • N1-06
  • N1-08
  • N1-10
  • N1-13
  • N1-16
  • N1-20
  • N1-23
  • N1-L10
N3 Series
Nozzle
  • N3-06
  • N3-08
  • N3-10
  • N3-13
  • N3-16
  • N3-20
  • N3-23
  • N3-L10
Parts

Replacement Parts

Name

Specifications

FM2024-28

HAKKO FM-2024 conversion kit
* Please contact your local distributor or dealer about the part number for your market.

70W (24V), with DCB for FM-203

FM2024-42

HAKKO FM-2024 conversion kit (for North America)

FM2024-43

HAKKO FM-2024 conversion kit (for Europe)

FM2024-44

HAKKO FM-2024 conversion kit

70W (24V), w/o DCB for FM-206

FM2024-02

Desoldering tool Handpiece FM-2024, 70W (24V)

B2872

Handle for gun configuration

B2876

Nozzle remover

A1511

Filter pipe assembly (qty 10)
* Discontinued. The replacement is "A1612".

A1612

Filter pipe assembly (qty 10)
* The replacement for A1511.

B2873

Cleaning drill for heating element

B1087

Cleaning pin for nozzle Φ1mm

A1514

Ceramic paper filter (qty 10)
* Discontinued. The replacement is "A1613".

A1613

Ceramic paper filter (qty 10)
* The replacement for A1514.

FH100-03

Iron holder <w/cleaning sponge>
* Discontinued

B2881

Iron holder assembly (for FM-2024), with screw, for FH-100 (discontinued)

FH200-05

Iron holder (HAKKO 599B tip cleaner), with power-save function

B3413

Iron holder assembly (for FM-2024), with screw, for FH-200 with power-save function

A1519

Cleaning sponge (yellow)
* The replacement for A1536.

A1536

Cleaning sponge (green)
* Discontinued. The replacement is "A1519".

B3253

Connecting cable

B2300

Heat resistant pad

B2880

Vacuum outlet cap with O-ring

A1512

Front holder

A1513

Back holder bushing

B2877

Hose

B2878

Back holder

B2879

Flange



Optional Parts

Name

Specifications

599B-02

HAKKO 599B tip cleaner

B2874

Cleaning pin nozzle Φ0.6mm

B1086

Cleaning pin nozzle Φ0.8mm

B1088

Cleaning pin nozzle Φ1.3mm

B1089

Cleaning pin nozzle Φ1.6mm

B2875

Cleaning pin nozzle Φ2mm / 2.3mm
